TMF-555RS - Datasheet

MBA

Category Information

Mounts - Levelling Bonded Neoprene - No Stud

No Stud Levelling Bonded Neoprene Mounts. Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.

    Product Data

    • Load Capacity : 9.0 to 29.0 Kg
    • Min Load Deflection 1.270 mm
      (Equiv. 0.05 in.)
    • Max Load Deflection 6.350 mm
      (Equiv. 0.25 in.)
    • Thread 3/16-16
    • Base Diameter 55.6 mm
    • Foot Height 20.6 mm
    • Top Diameter 34.9 mm
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 60855K73
      View full details

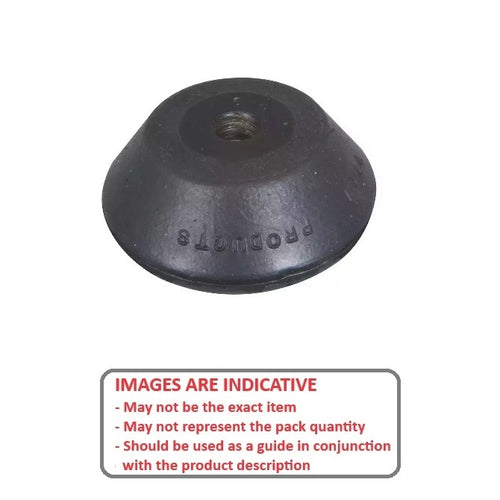

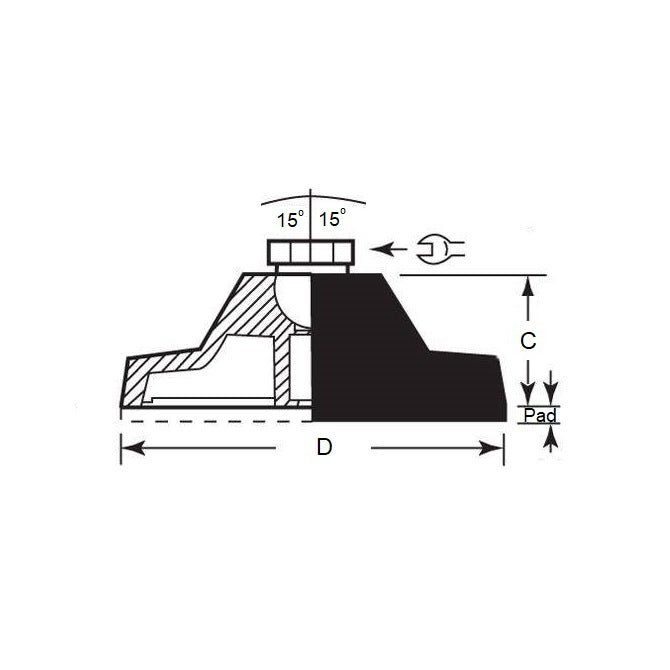

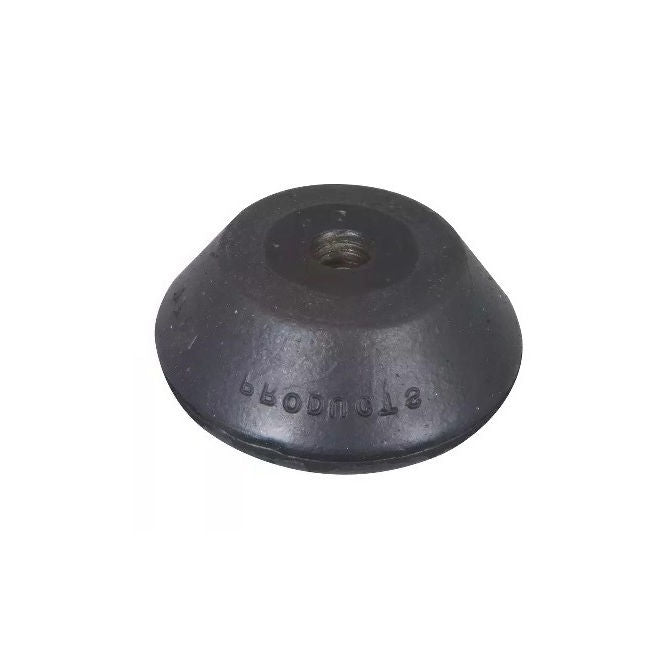

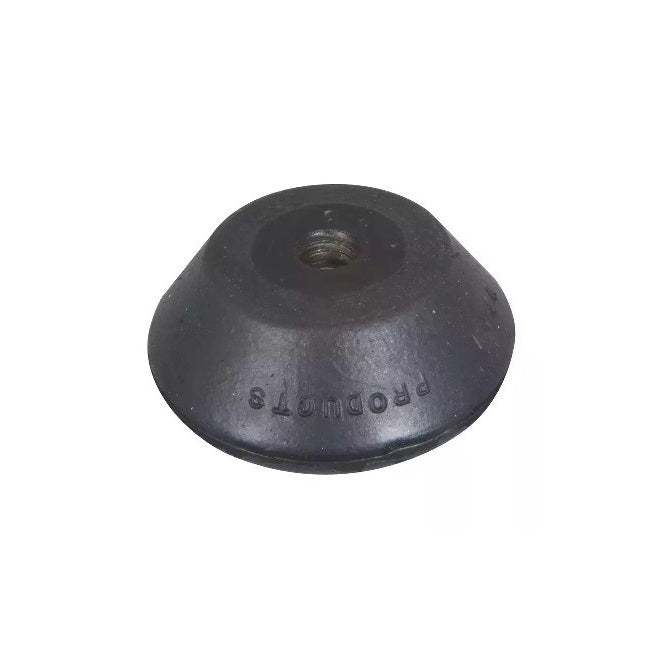

      TMF-555RSDiagramTMF-555RSImage
