CCE-00800-S15 - Datasheet
MBA
Category Information

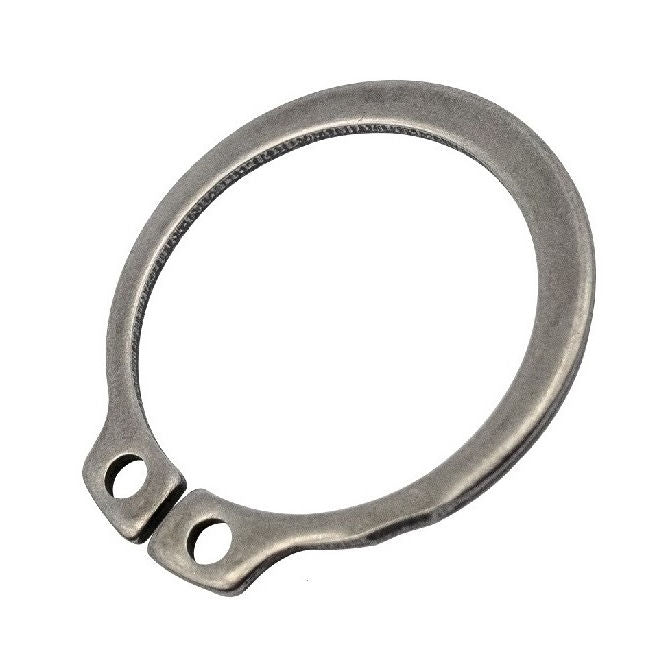

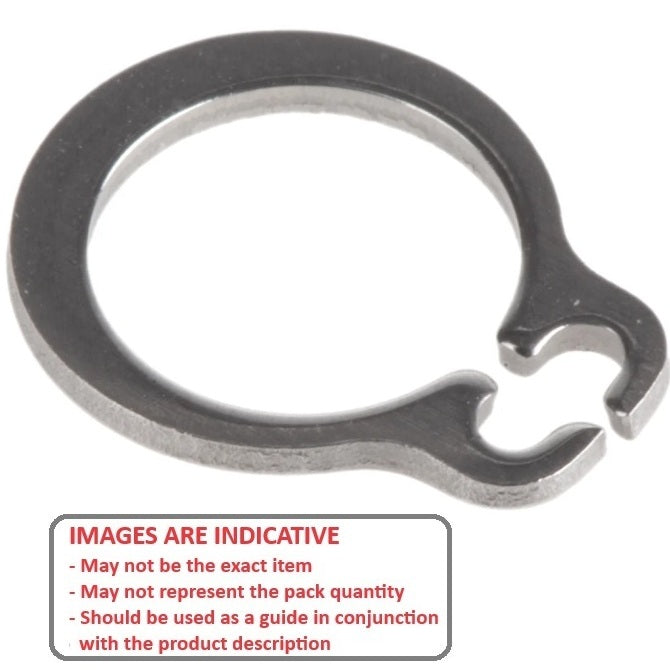

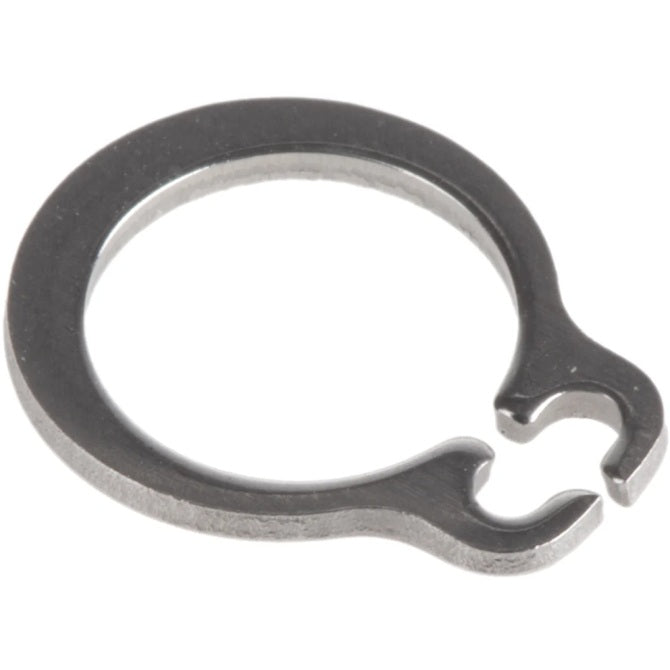

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
8.00
mm
(Equiv. 0.315 in.) - Clip Thickness (T)
0.80
mm
+ 0.00 / - 0.06
(Equiv. 0.031 in.) - Groove Dia. (Dg)
7.60
mm
+ 0.00 / - 0.05
(Equiv. 0.299 in.) - Approx. Loose Circlip ID (A) 7.40 mm
- Groove Width (W) 0.90 mm
- Clearance on Shaft (C1) 14.70 mm
- Clearance in Groove (C1) 14.00 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.60
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-008-SS
- 90967A120
- Seeger A-008-SS
- Seeger A8-411
- Seeger A8K500-BLS
- Seeger A8X0.8-411
- Seeger A8X0.8SS
- Bossard BN818-008-SS
- Waldes D1400-008-SS
- NoCor DSH-008-SS
- Rotor Clip DSH-008-SS
- Seeger NZT.A8-411
- DSH008SS
- 14000080KSF
- 1400-0080KSF
- D1400008SS
- D1400-0080KSF
- D14000080KSF
- A8411
- A8K500BLS
- A8X08411
- A008SS
- NZTA8411
- 471008SS
- BN818008SS
