CCE-00800-C - Datasheet
MBA
Category Information

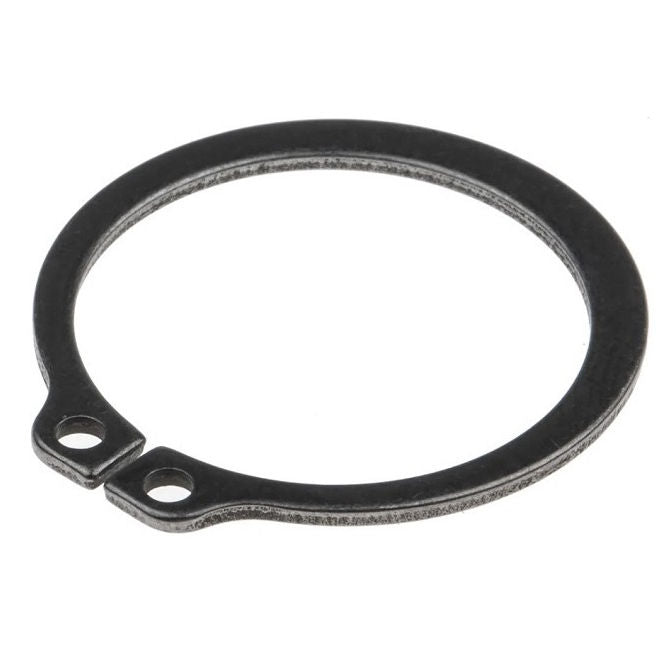

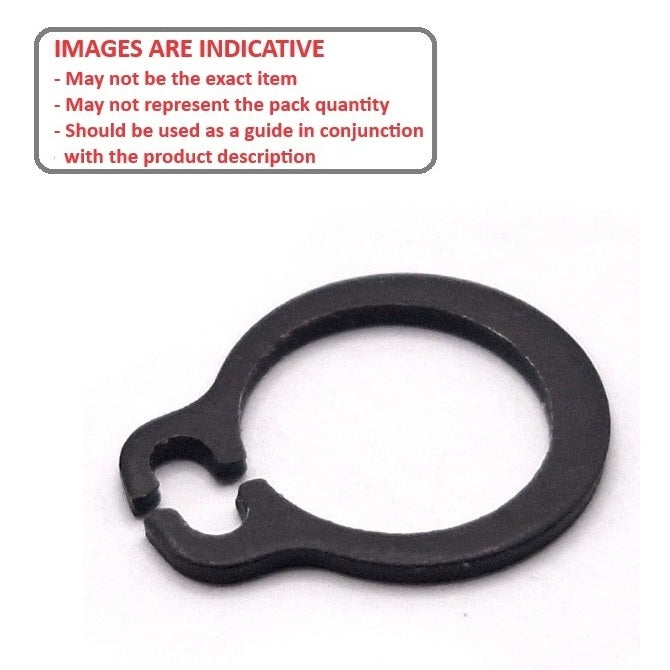

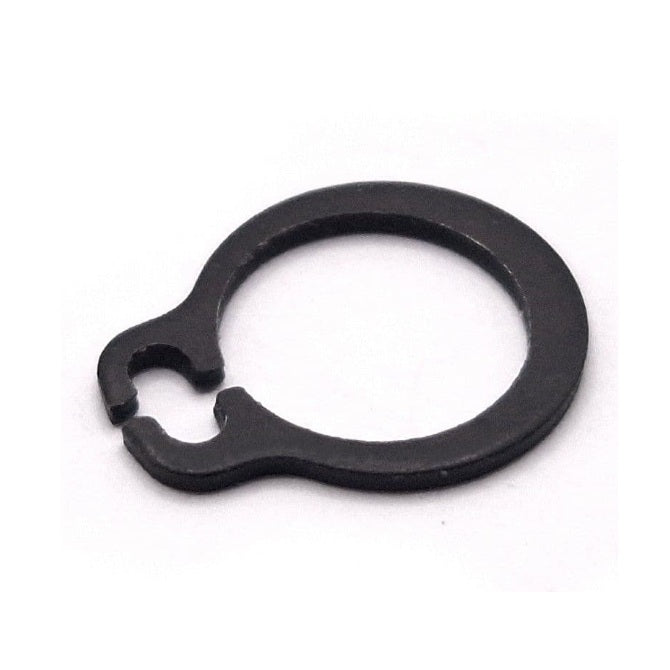

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds) : 8.00 mm
- Clip Thickness (T)
0.80
mm
+ 0.00 / - 0.05
(Equiv. 0.031 in.) - Groove Dia. (Dg)
7.60
mm
+ 0.00 / - 0.06
(Equiv. 0.299 in.) - Approx. Loose Circlip ID (A) 7.40 mm
- Groove Width (W) 0.90 mm
- Clearance on Shaft (C1) 14.70 mm
- Clearance in Groove (C1) 14.00 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.60
- Standard DIN471
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-008
- 98541A116
- Seeger® A-008
- Seeger® A8
- Seeger® A8-BLS
- Seeger® A8X0.8
- Bossard® BN818-008
- Waldes® D1400-008
- Huyett® DSH-008
- NoCor® DSH-008
- Rotor Clip® DSH-008
- Small Parts MER-08
- Seeger® NZT.A8
- BN818008
- A008
- D1400-0080
- D14000080
- MER08
- MD0471MQB008
- 471008
- CCE00800C
- DSH008
- A8BLS
