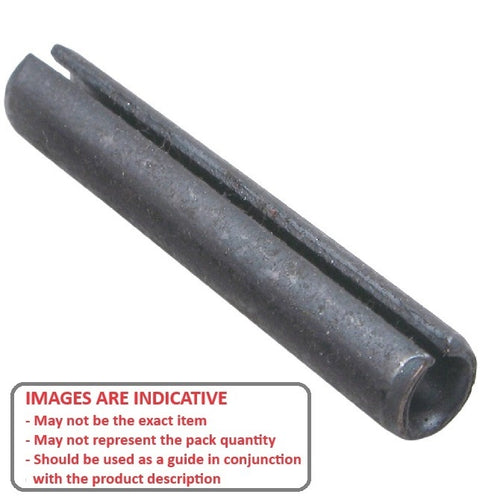

RP080-0550-C - Datasheet
Brighton Best
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D)
:
8.00
mm
(Equiv. 0.315 in.) - Length (L)
55.00
mm
(Equiv. 2.165 in.) - Free Diameter
8.80
mm
(Equiv. 0.346 in.) - Thickness (S) 1.50 mm
- Chamfer Length (cL) 1.60-2.00 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Steel CS70
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 802510
- 91611A520
- NoCor SPM-080-055
- SAP8-55
- SAP855
- SPM080055
