BP0042-0080-0120-DP - Datasheet
MBA
Category Information

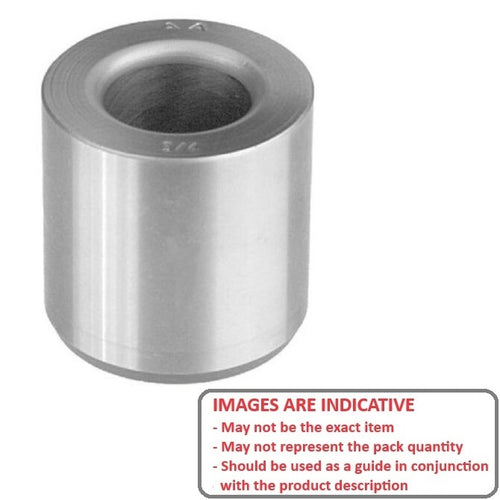

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64

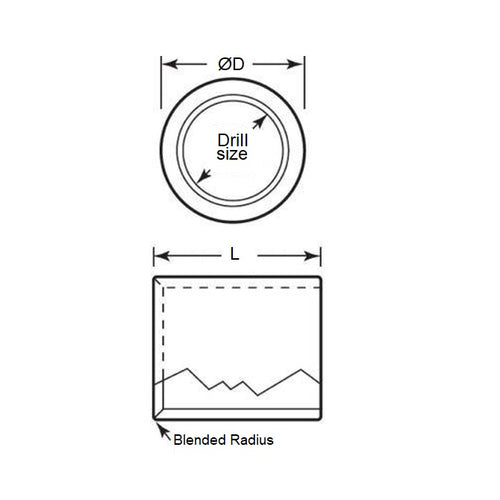

Product Data
- Outside Diameter (OD)
:
8.000
mm
+ 0.023 / + 0.032
(Equiv. 0.315 in.) - Drill Size
4.200
mm
+ 0.004 / + 0.012
(Equiv. 0.165 in.) - Length
12.000
mm
(Equiv. 0.472 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- 8486A418
- DM04212
- DM-04212
