LYP-CLK-080-032-S6 - Datasheet
MBA
Category Information

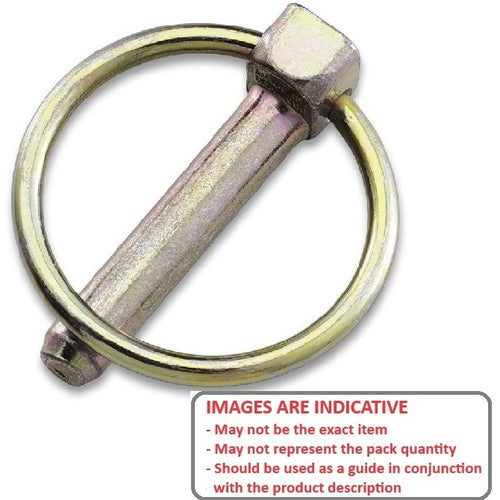

Pins - Clik - Stainless SteelStainless Steel Clik Pins. Self locking ring snaps down to hold them securely in place. Easy grip ring for quick removal. Also known as a lynch pin.
- Features an over center ring loop attached to the head which snaps down hard to hold the fastener in place.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
- Pin is made from carbon steel and heat treated to RA 50-60.
- Ring is hot drawn spring steel with hardness of RC 47-48.
Product Data

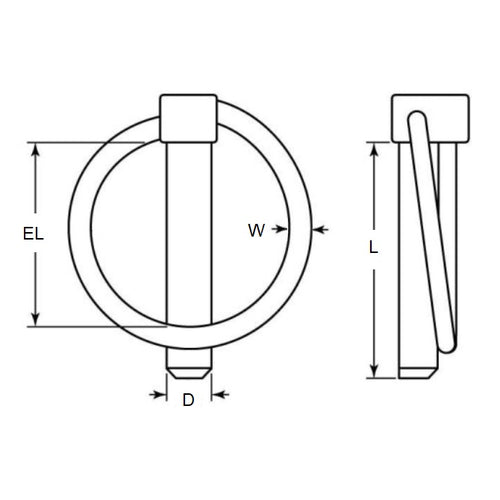

- Pin Diameter : 8.00 mm
- Grip Length 32.0 mm
- Wire Thickness 3.0 mm
- Overall Length 48 mm
- Material Stainless Steel 316 (Similar to A4 or 18-10)
