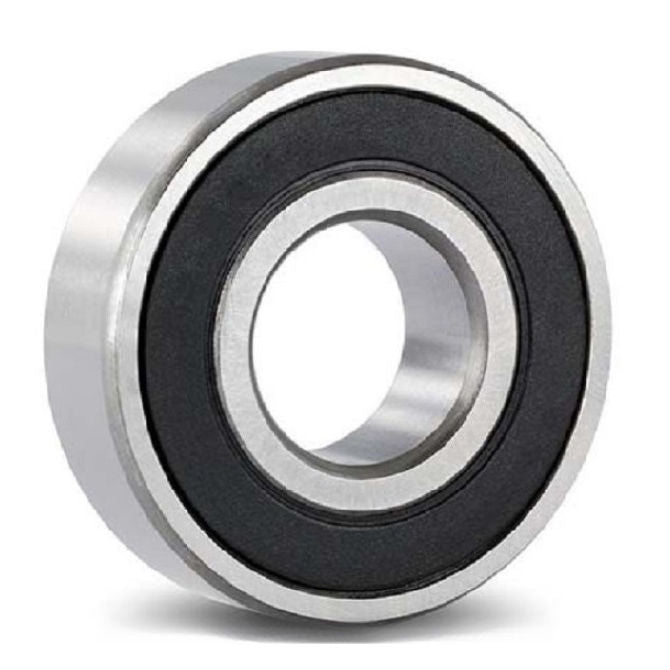

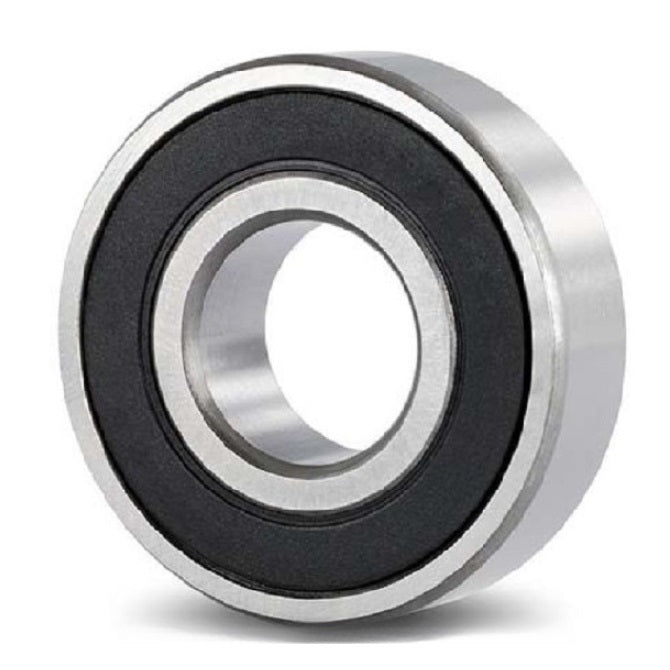

S608-2RS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
- ID (d)
:
8.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.315 in.) - OD (D)
22.000
mm
+ 0.000 / - 0.010
(Equiv. 0.866 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.125
(Equiv. 0.276 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 608
- Limiting Speed 23120
- Cage Type Ribbon
- Static Load Rating KGf 141
- Dynamic Load Rating KGf 336
- Radii 0.30 mm
- Inner Shoulder (UI) 10.50mm
- Outer Shoulder (UO) 19.03 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- CMB - 65 All Models - Bearing 8-22-7mm
- CMB - CAM Marine - 80 - Bearing 8-22-7mm
- CMB - CAM MTR - 67 - Bearing 8-22-7mm
- CMB - Hydro - Purple Head - 67 - Bearing 8-22-7mm
- Como - 51 All Models - Bearing 8-22-7mm
- Enya - 4C - 45 - Bearing 8-22-7mm
- Enya - 4CII - 120 - Bearing 8-22-7mm
- Enya - 53 4C - 46 - Bearing 8-22-7mm
- HB - 40 All Models - Bearing 8-22-7mm
- HB - 50 All Models - Bearing 8-22-7mm
- HB - PDP Old - 61 - Bearing 8-22-7mm
- HP - Silver Star - 61 - Bearing 8-22-7mm
- HP - VT - 61 - Bearing 8-22-7mm
- Kalistratov - K - 91 - Bearing 8-22-7mm
- Mac - 15 All Models - Bearing 8-22-7mm
- Magnum Power - XL - 46 - Bearing 8-22-7mm
- Magnum Power - XLFS 52 AR - 30 - Bearing 8-22-7mm
- McCoy - Old - 52 - Bearing 8-22-7mm
- MDS - 38 Heli Pro - 29 - Bearing 8-22-7mm
- MDS - 46 All Models - Bearing 8-22-7mm
- MDS - 58 - 38 - Bearing 8-22-7mm
- MDS - Pro - 1.4 - Bearing 8-22-7mm
- Merco - 16 All Models - Bearing 8-22-7mm
- Merco - 2.49 All Models - Bearing 8-22-7mm
- Merco - 49 All Models - Bearing 8-22-7mm
- MVVS - Twin - 40 - Bearing 8-22-7mm
- OPS - Supra RC - 21 - Bearing 8-22-7mm
- OS - FL 70 4 Stroke Engine - 32 - Bearing 8-22-7mm
- OS - FS - 300 - Bearing 8-22-7mm
- OS - FS-4C Surpass - 120 - Bearing 8-22-7mm
- OS - H Old - 46 - Bearing 8-22-7mm
- OS - VR-DF - 61 - Bearing 8-22-7mm
- OS - VR-M - 91 - Bearing 8-22-7mm
- OS - VR-Marine New - 81 - Bearing 8-22-7mm
- Picco - 21 - Bearing 8-22-7mm
- Picco - 40 All Models - Bearing 8-22-7mm
- Picco - 60 All Models - Bearing 8-22-7mm
- Picco - Air - 45 - Bearing 8-22-7mm
- Picco - EXR Blackhead Green - 45 - Bearing 8-22-7mm
- Picco - M - 45 - Bearing 8-22-7mm
- Rossi - 21 All Models - Bearing 8-22-7mm
- Rossi - DF - 21 C - Bearing 8-22-7mm
- Rossi - Marine - 21 - Bearing 8-22-7mm
- Rossi - New Marine - 21 - Bearing 8-22-7mm
- Saito - 30 All Models - Bearing 8-22-7mm
- Saito - 72 All Models - Bearing 8-22-7mm
- Saito - FA 50 - Bearing 8-22-7mm
- Saito - FA 72 - 56 - Front Bearing 8-22-7mm
- Saito - FA TI Inline Twin - 82 - Front Bearing 8-22-7mm
- Saito - Twin Old - 120 - Bearing 8-22-7mm
- Super Tigre - G90 Ring Old - 75 - Bearing 8-22-7mm
- Super Tigre - S - 45 - Bearing 8-22-7mm
- Super Tigre - S - 65 - Bearing 8-22-7mm
- Super Tigre - S K - 65 - Bearing 8-22-7mm
- Super Tigre - S K - 75 - Bearing 8-22-7mm
- Super Tigre - S K - 90 - Bearing 8-22-7mm
- Thunder Tiger - SF - 120 - Bearing 8-22-7mm
Cross References
- Stainless 6082RSMC3
- Stainless 608-2RS-MC3
- Similar Part 608H
- Stainless 608RSMC3
- Stainless 608-RS-MC3
- 6153K71
- Sealed S608 / 7
- Similar Part SS608
- KSK SS608-2RS
- KSK SS608-RS
- 608H-RS
- 608H-VV
- 608H-2RS
- 608HVV
- 608H-DDU
- 608HRS
- 608H2RS
- 608HDDU
- SS608RS
- SS6082RS
- SS608-DDU
- SS608-VV
- SS608VV
- SS608DDU
- S6082RSMC3
- S608-2RSMC3
- S608-RSMC3
- S608RSMC3
- 608 Basic Size Ref
