698-CSN-T9H-ECO - Datasheet
ECO
Category Information

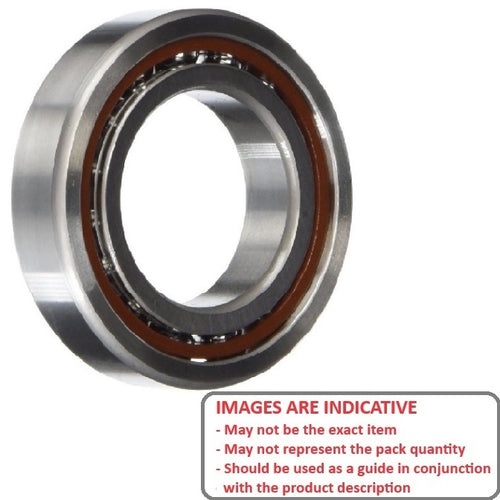

Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data
High speed polyamide cage. Ceramic balls.

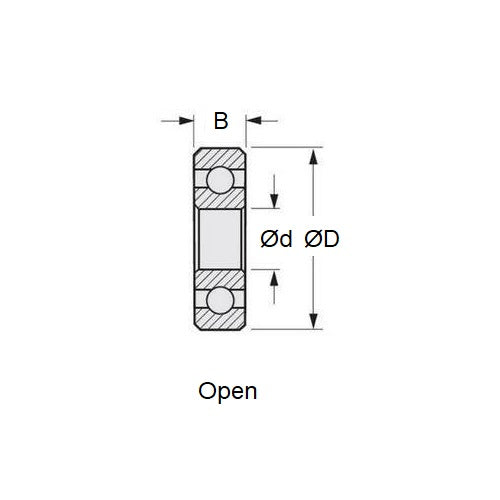

- ID (d)
:
8.000
mm
(Equiv. 0.315 in.) - OD (D)
19.000
mm
(Equiv. 0.748 in.) - Width (B)
6.000
mm
(Equiv. 0.236 in.) - Precision Grade Economy
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 698
- Limiting Speed 54720
- Cage Type Polyamide
- Static Load Rating KGf 71.4
- Dynamic Load Rating KGf 173.3
- Radii 0.30 mm
- Inner Shoulder (UI) 9.80mm
- Outer Shoulder (UO) 16.66 mm
- Number of Balls 7
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 120 Deg. C
