SF688B-ZZ-MC3-JP6 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.

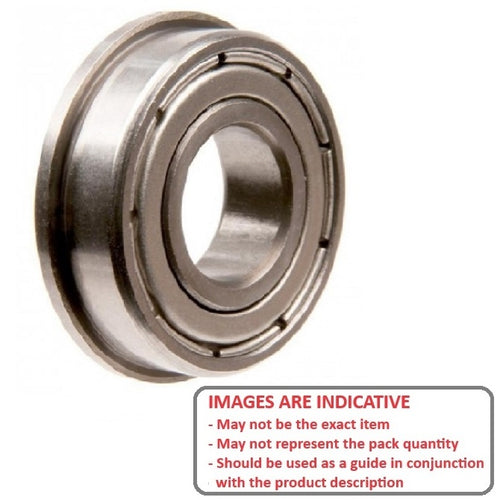

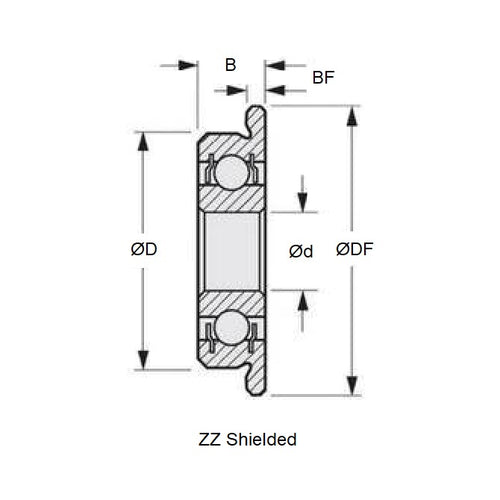

Product Data
Non ISO Width
- ID (d)
:
8.000
mm
+ 0.000 / - 0.007
(Equiv. 0.315 in.) - OD (D)
16.00
mm
+ 0.000 / - 0.007
(Equiv. 0.63 in.) - Width (B)
6.000
mm
+ 0.000 / - 0.120
(Equiv. 0.236 in.) - Flange Diameter (DF) 18.000 mm
- Flange Width (BF) 1.300 mm
- Precision Grade P6
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part F688B
- Limiting Speed 37800
- Cage Type Ribbon
- Static Load Rating KGf 60
- Dynamic Load Rating KGf 128
- Radii 0.20 mm
- Inner Shoulder (UI) 9.65mm
- Outer Shoulder (UO) 14.20 mm
- Number of Balls 10
- Clearance MC3 (5 to 10)
- Precision Grade P6
- Closure Type ZZ
- Max Temperature 120 Deg. C
