Miniature Bearings Australia
NM-0080-0150-0120 - Datasheet
MBA
Category Information

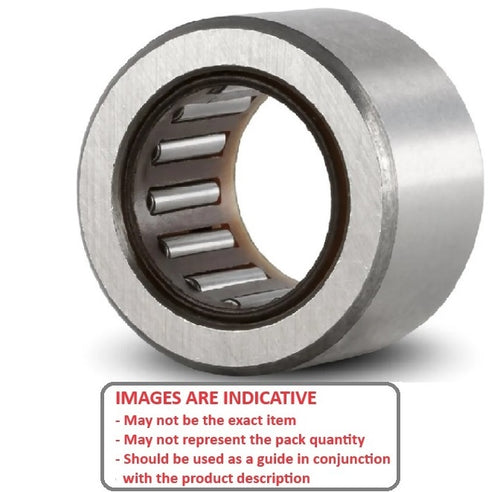

Bearings - Needle Roller without Inner Ring - MachinedMachined Needle Roller without Inner Ring Bearings. This is the main category in this series
- Pair these bearings with a suitable inner ring, or run them directly on a high quality shaft.
- An expanded range may be available on special order. Please enquire.

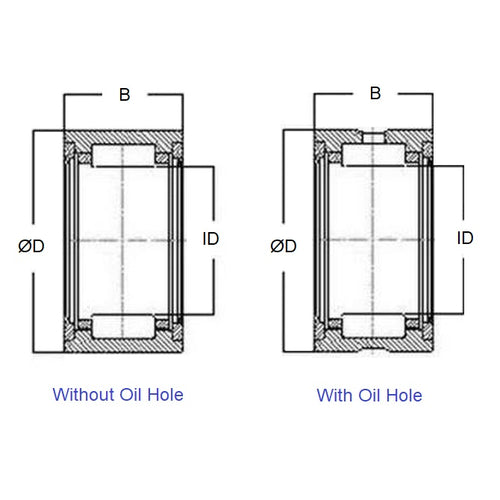

Product Data
- Shaft Diameter (Fw)
:
8.000
mm
(Equiv. 0.315 in.) - OD (D)
15.000
mm
(Equiv. 0.591 in.) - Width (B)
12.000
mm
(Equiv. 0.472 in.) - Basic Dynamic Load Rating 480 Kgf
- Basic Static Load Rating 520 Kgf
- Seals No
- Oil Hole No
- Material Chrome Steel
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Nitro Engine Parts
- CMB - Evolution - 21 - Bearing 8-15-12mm
- CMB - GP - 21 - Bearing 8-15-12mm
Cross References
- IKO TAF81512
- Nachi TAF-81512
