Miniature Bearings Australia
BSP00800-01550-0110-SB - Datasheet
MBA
Category Information

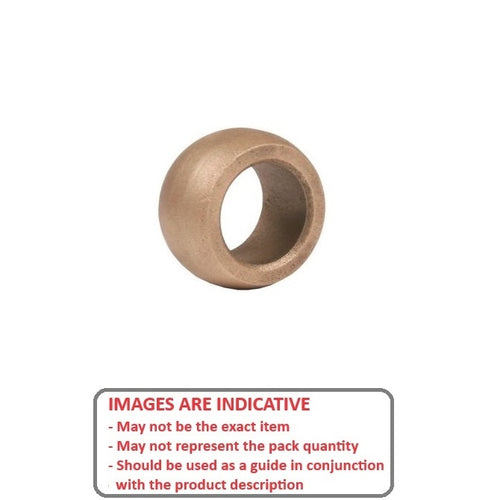

Bushes - Spherical Sintered BronzeSpherical Sintered Bronze Bushes. Spherical OD Oil Impregnated Sintered Bronze Bushes.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- ID and OD oversized. Enquire if details required.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

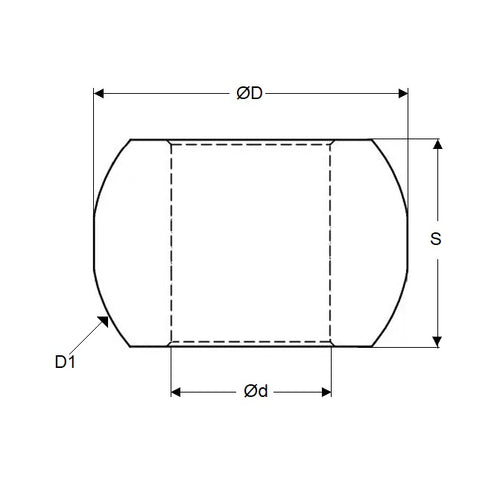

- Nominal Inside Diameter (d) : 8.000 mm
- Nominal Outside Diameter (D) 15.500 mm
- Length (s) 11.000 mm
- Diameter of curvature (D1) 16.00 mm
- Material Bronze SAE 841 Sintered
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- A 7B 4MS08H1511
- A7B4MS08H1511
