SFMR128-ACO-ECO - Datasheet
ECO
Category Information

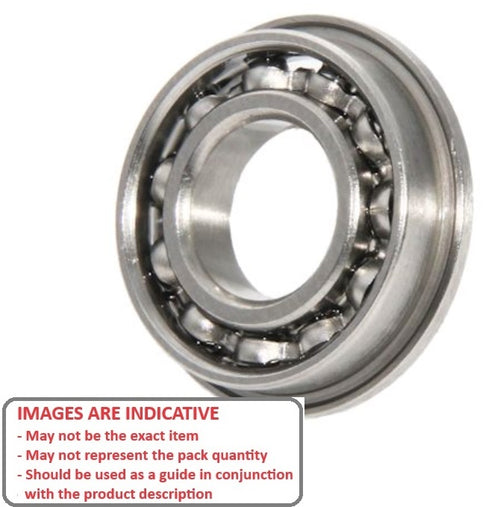

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

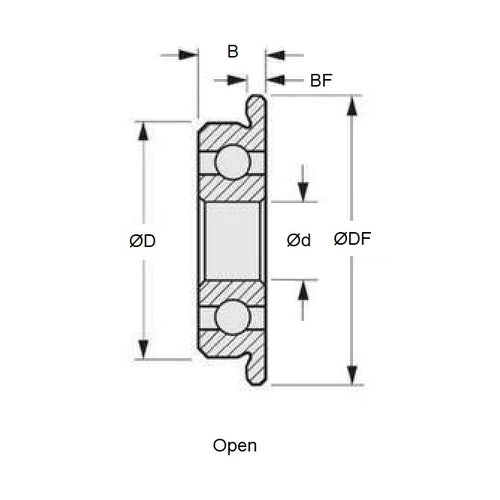

- ID (d)
:
8.000
mm
(Equiv. 0.315 in.) - OD (D)
12.000
mm
(Equiv. 0.472 in.) - Width (B)
2.500
mm
(Equiv. 0.098 in.) - Flange Diameter (DF) 13.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Economy
- Closure Type Open
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Oil
- Lubrication Name ACO Anti Corrosion Oil Film
- Basic Part FMR128
- Limiting Speed 45600
- Cage Type Standard
- Static Load Rating KGf 26.6
- Dynamic Load Rating KGf 52.2
- Radii 0.15 mm
- Inner Shoulder (UI) 9.05mm
- Outer Shoulder (UO) 10.90 mm
- Number of Balls 12
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type Open
- Max Temperature 170 Deg. C
