Category Information

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

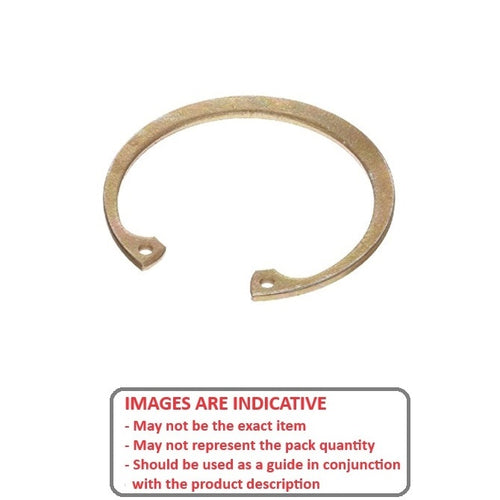

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 88.90 mm
(Equiv. 3.5 in.)
Clip Thickness (T) 2.77 mm _{+/- 0.152}
(Equiv. 0.109 in.)
Groove Dia. (Dg) 94.23 mm _{+ 0.00 / - 0.08}
(Equiv. 3.71 in.)
Approx. Loose Circlip OD (Dr) 98.81 mm + 1.40 / - 1.40
Groove Width (W) 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C) 71.12 mm
Clearance in Groove (C1) 73.66 mm
Min. Lug Diameter (h) 3.12 mm
Min. Extension (n) 8.00
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US
