Miniature Bearings Australia
0T-0889-0572-0165-SB - Datasheet
MBA
Category Information

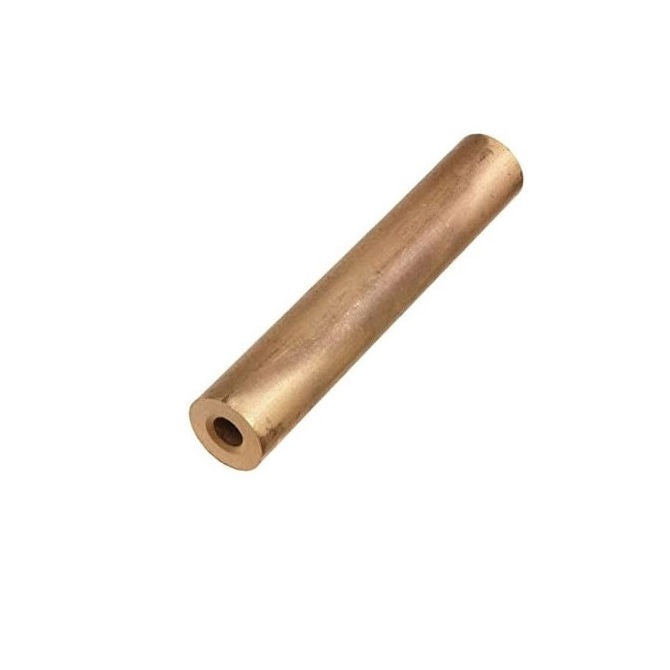

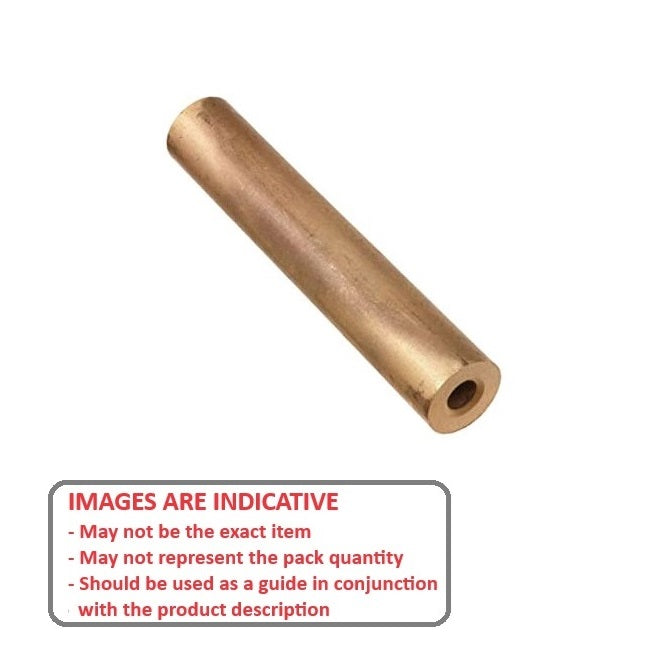

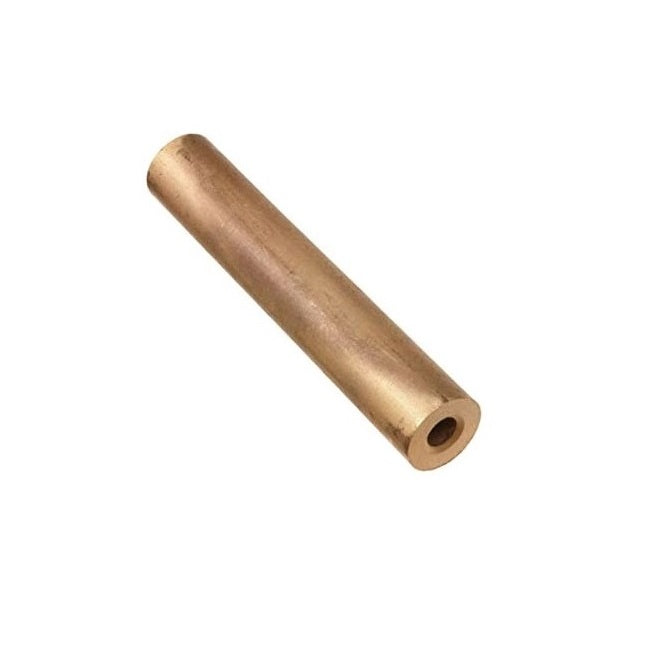

Tube - Round - Sintered BronzeSintered Bronze Round Tube. Oil impregnated sintered bronze tubing - self lubricating. B438 grade 1, Type 2 - AMS4805-D. SAE 841 Type 1, Class A
- Round tubing are available in many different materials.
- Includes K&S Metals range and more
- Sizes listed are FINISHED SIZE. Product supplied will be larger on OD and smaller on ID to allow for machining.
Product Data

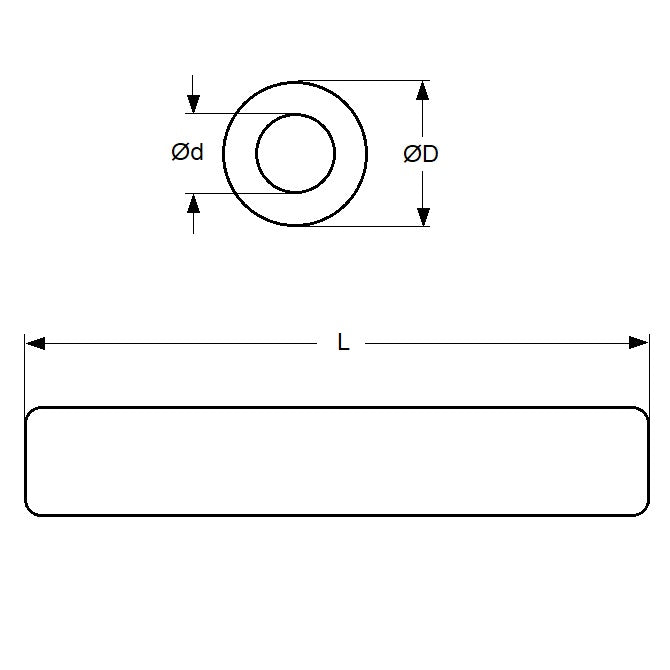

- Nominal Outside Diameter
:
88.90
mm
+ 0.80 / + 3.20
(Equiv. 3.5 in.) - Nominal Inside Diameter
57.15
mm
- 0.80 / - 3.20
(Equiv. 2.25 in.) - Length (L)
165.1
mm
(Equiv. 6.5 in.) - Material Bronze SAE 841 Sintered
Product Compliance and Data
Additional Resources
Cross References
- Oilite CC-3500-1
- Oilube CC-3500-1
- A7B4-SCB1828
- A7B4SCB1828
- CC35001
