W0850-FP-105-0350-S4 - Datasheet

MBA

Category Information

Spacers - Through Bore Round - Stainless Steel

Stainless Steel Through Bore Round Spacers. Shaft spacers - Stainless Steel

An expanded range may be available on special order. Please enquire.

Product Data

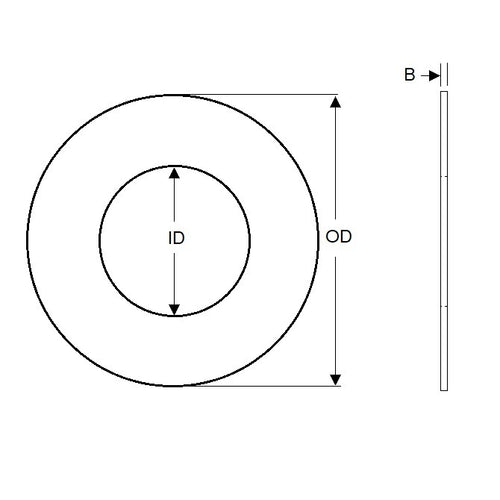

ID (d) : 85.000 mm _{+ 0.120 / + 0.470}
(Equiv. 3.346 in.)
OD (D) 105.000 mm _{- 0.120 / - 0.470}
(Equiv. 4.134 in.)
Length (L) 3.500 mm _{+ 0.000 / - 0.080}
(Equiv. 0.138 in.)
Precision
85.12
Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Country of Origin: TW

Product Compliance and Data

Additional Resources

Flat Washers

Cross References

W0850FP105035CHSS
W0850FP105035CH-SS

View full details

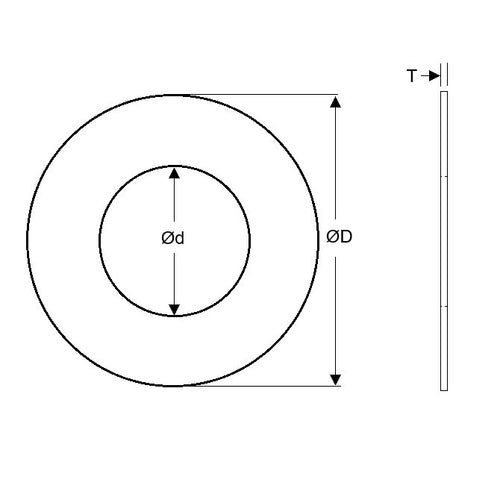

W0850-FP-105-0350-S4Diagram

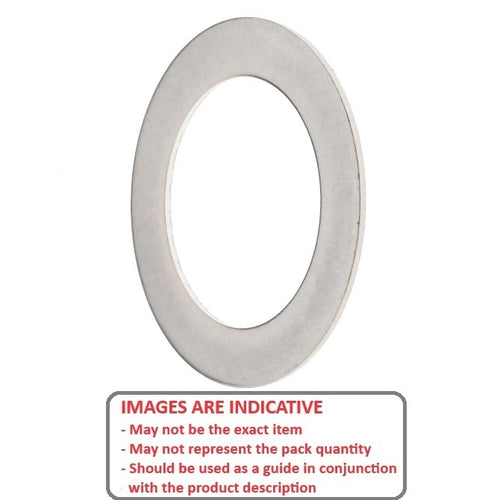

W0850-FP-105-0350-S4Image
