CCE-08255-C - Datasheet
MBA
Category Information

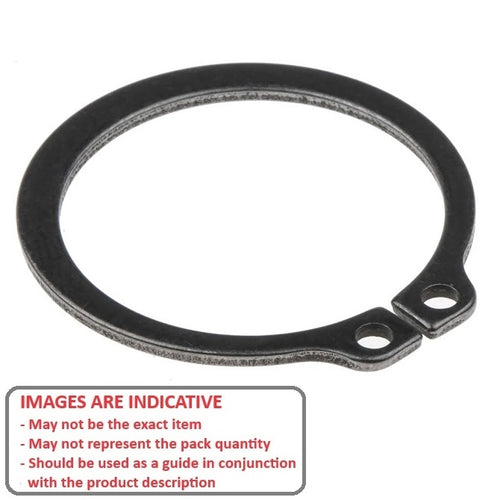

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
- Shaft Diameter (Ds)
:
82.55
mm
(Equiv. 3.25 in.) - Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.) - Groove Dia. (Dg)
78.13
mm
+/- 0.076
(Equiv. 3.076 in.) - Approx. Loose Circlip ID (A) 76.35 mm
- Groove Width (W) 2.62 mm
- Clearance on Shaft (C1) 97.28 mm
- Clearance in Groove (C1) 92.71 mm
- Min. Lug Diameter (h) 3.12 mm
- Min. Extension (n) 6.86
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A483
- NoCor SH-325
- N14000325
- N1400-0325
- N14000325APP
- N1400-0325APP
- SH325
