P-020G-080-060P-AL-G-079 - Datasheet
MBA
Category Information

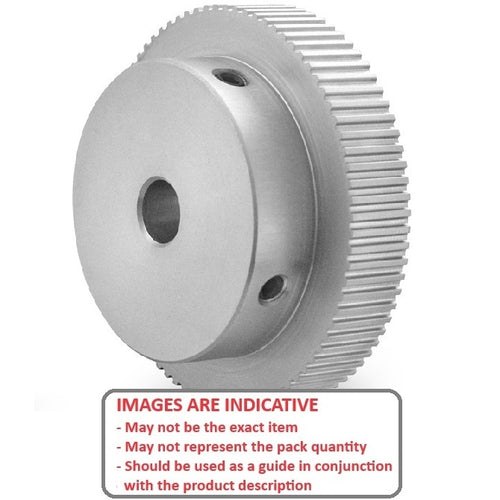

Pulleys - Metric Timing - 2.000mm Pitch - GT - 6mm Wide - Through BoreThrough Bore 6mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit 2mm Pitch GT Timing Belts 6mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- Set Screw and EZI-LOK Hubs
Product Data
- Number of Teeth : 80
- Max Belt Width
6.00
mm
(Equiv. 0.236 in.) - Bore (d)
7.938
mm
(Equiv. 0.313 in.) - Bore Type Finished
- Locking Type Set Screw

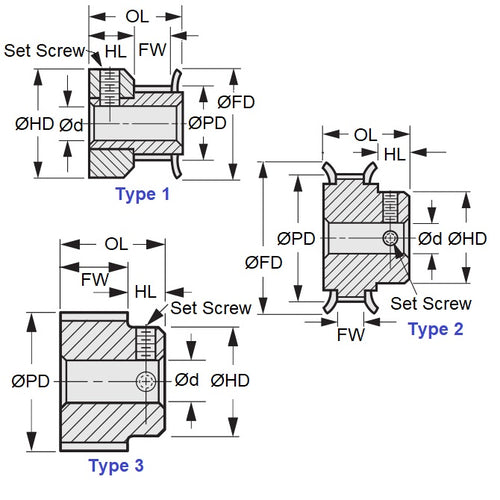

- Type 3
- Pitch Dia. (PD) 50.91 mm
- Overall Length 19.5 mm
- Hub Diameter (HD) 38.1
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- 3764N12
- Gates 80-2P06-6A4
- A6A51080NF0610
- A6A51-080NF0610
- 802P066A4
