CCE-08017-S15 - Datasheet

MBA

Category Information

Retaining Rings - External - Circlips - Standard - Stainless Steel

Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.
  • PH15-7 Mo Stainless Steel.

Product Data

  • Shaft Diameter (Ds) : 80.17 mm
    (Equiv. 3.156 in.)
  • Clip Thickness (T) 2.36 mm +/- 0.152
    (Equiv. 0.093 in.)
  • Groove Dia. (Dg) 75.84 mm +/- 0.076
    (Equiv. 2.986 in.)
  • Approx. Loose Circlip ID (A) 74.20 mm
  • Radial Wall (S) min/max B (Square Ends) mm
  • Groove Width (W) 2.60 mm
  • Standard MIL-16624
  • Material Stainless Steel Grade PH15-7 Mo
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor SH-315-SS
  • N14000315KSF
  • N1400-0315KSF
  • SH315SS
View full details

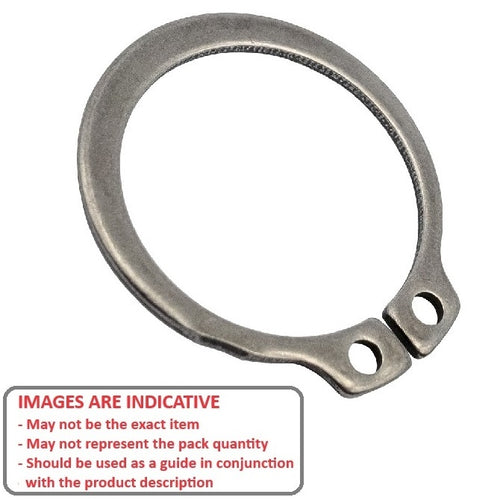

CCE-08017-S15DiagramCCE-08017-S15Image
