CFB080-80-140M-R60 - Datasheet
MBA
Category Information

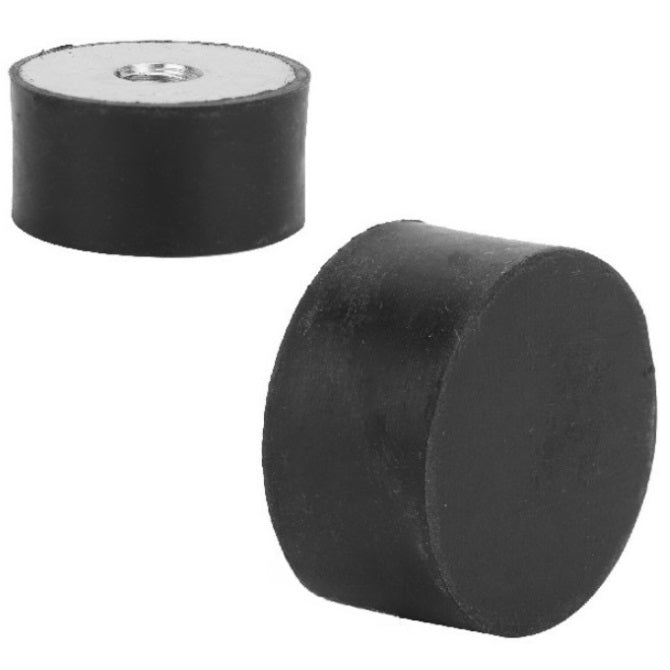

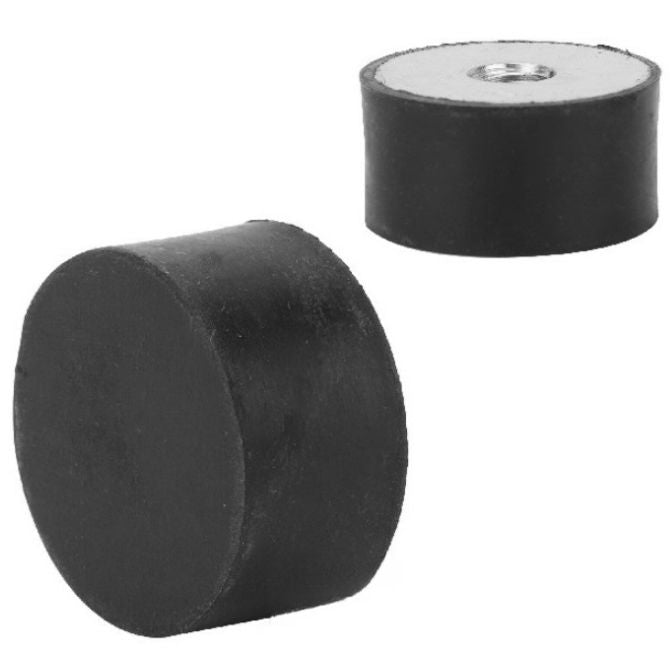

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers
Product Data
- Nom. Body Diameter (D)
:
80.0
mm
(Equiv. 3.15 in.) - Body Height (H)
80.0
mm
(Equiv. 3.15 in.) - Thread Size M14x2.00
- Shore Hardness 60
- Compression Load 614 Kg (lbs)
- Deflection 20.0 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 8080FFB1460
- 8080FFB14-60
