CCE-00899-B - Datasheet

MBA

Category Information

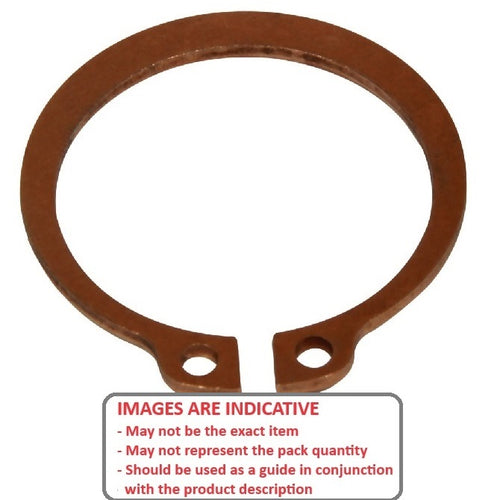

Retaining Rings - External - Circlips - Standard - Beryllium Copper

Beryllium Copper Standard Circlips External Retaining Rings. Imperial and metric DIN471 / N1400 / D1460. Retaining rings. Snap Rings (USA).

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Shaft Diameter (Ds) : 8.99 mm
    (Equiv. 0.354 in.)
  • Clip Thickness (T) 0.64 mm +/- 0.051
    (Equiv. 0.025 in.)
  • Groove Dia. (Dg) 8.40 mm +/- 0.051
    (Equiv. 0.331 in.)
  • Approx. Loose Circlip ID (A) 8.13 mm
  • Groove Width (W) 0.70 mm
  • Clearance on Shaft (C1) 14.99 mm
  • Clearance in Groove (C1) 14.73 mm
  • Min. Lug Diameter (h) 0.99 mm
  • Min. Extension (n) 0.97
  • Standard MIL-16624
  • Material Beryllium Copper
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • NoCor SH-035-BC
  • N1400-0035BC
  • N14000035BC
  • SH035BC
