Miniature Bearings Australia
TP-087-1524-C - Datasheet
MBA
Category Information
Pins - Taper Imperial - Standard - Carbon SteelCarbon Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.

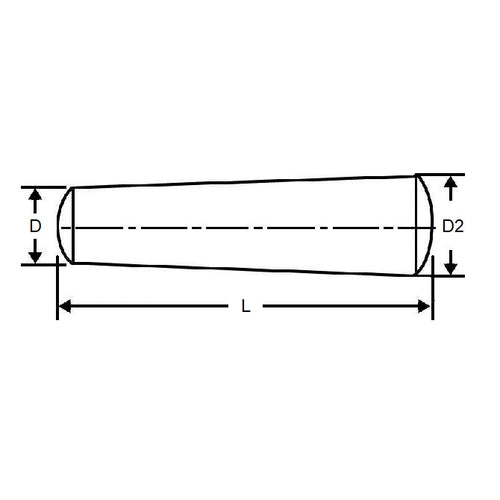

Product Data
- Nom. Large End Diameter (D2) : 8.73 mm
- Length (L) 152.40 mm
- Nom. Small End Diameter (D) 5.56 mm
- Pin Number 6
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 689390A361
- Huyett® TP-06-6000
- NoCor® TP-06-6000
- TP066000
