Miniature Bearings Australia
TP-087-1143-C - Datasheet
MBA
Category Information
Pins - Taper Imperial - Standard - Carbon SteelCarbon Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
Product Data

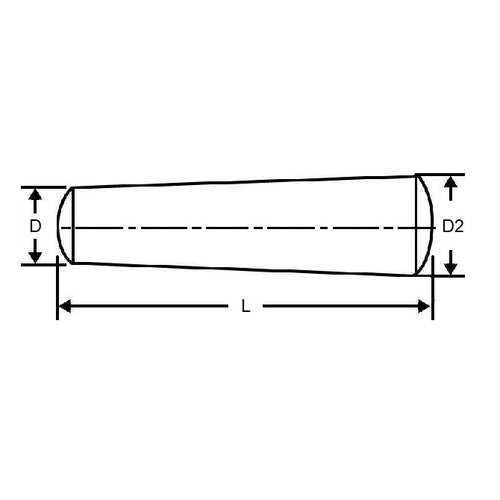

- Nom. Large End Diameter (D2) : 8.73 mm
- Length (L) 114.30 mm
- Nom. Small End Diameter (D) 6.35 mm
- Pin Number 6
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98390A354
- Huyett® TP-06-4500
- NoCor® TP-06-4500
- TP064500
