TP-087-1016-C - Datasheet
MBA
Category Information

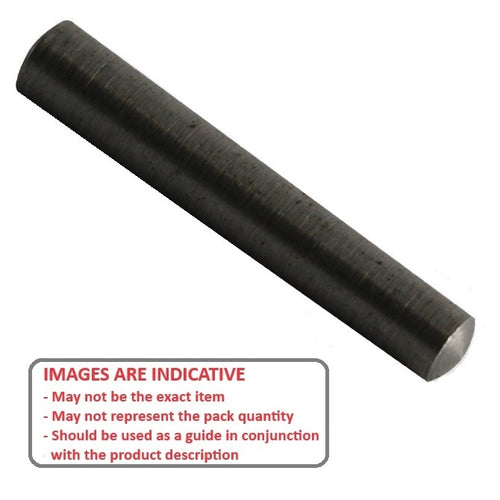

Pins - Taper Imperial - Standard - Carbon SteelCarbon Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
Product Data

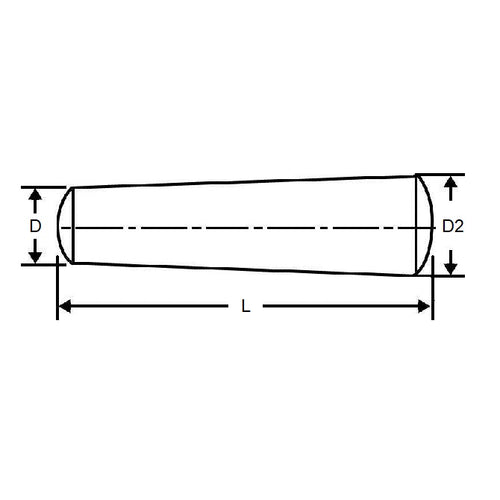

- Nom. Large End Diameter (D2)
:
8.73
mm
(Equiv. 0.344 in.) - Length (L)
101.60
mm
(Equiv. 4 in.) - Nom. Small End Diameter (D)
6.61
mm
(Equiv. 0.26 in.) - Pin Number 6
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98390A353
- NoCor TP-06-4000
- TP064000
