TPM-0800-07000-EI - Datasheet

MBA

Category Information

Pins - Taper Metric - Extractable - Internal Thread

Internal Thread Extractable Taper Metric Pins. Metric Sizes Tapered 1:50 and threaded internally for easy extraction.

  • An expanded range may be available on special order. Please enquire.
  • DIN 7978.

Product Data

  • Nom. Small End Diameter (D) : 8.00 mm
  • Length (L) 70.00 mm
  • Nom. Large End Diameter (D2) 9.40 mm
  • Thread Size M5 (5x0.8mm)
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Huyett® TPTMI-080-070
  • TPX870
  • TPX8-70
  • TPM080007000EX
View full details

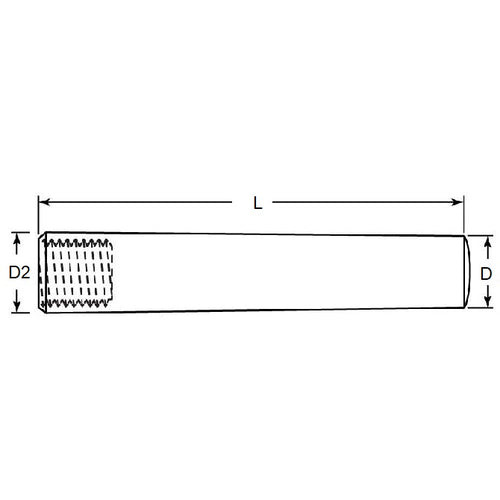

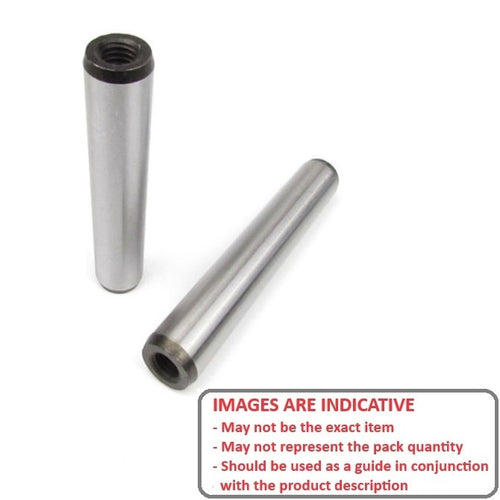

TPM-0800-07000-EIDiagramTPM-0800-07000-EIImage
