REM-080-R-CB - Datasheet
MBA
Category Information

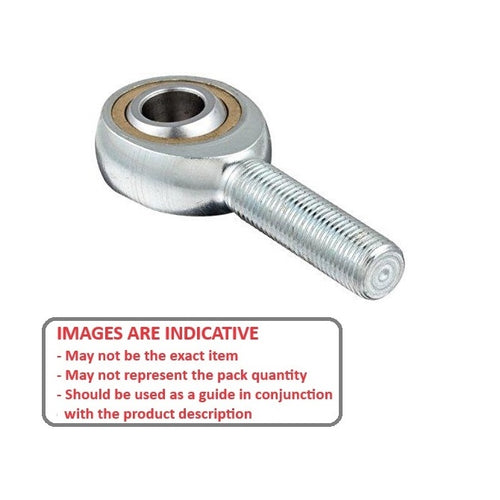

Rod Ends - Male - Steel - Bronze Lined - StandardStandard Bronze Lined Steel Male Rod Ends. Imperial and Metric / Carbon Steel. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.

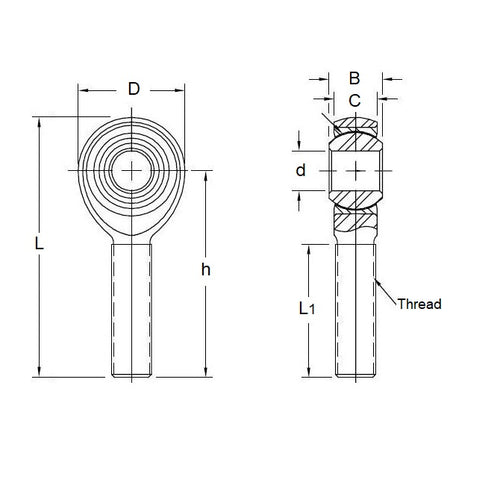

Product Data
- Eye Size (d1)
:
8
mm
(Equiv. 0.315 in.) - Overall Length (L)
53.00
mm
(Equiv. 2.087 in.) - Thread Size M8x1.25 Right
- Min. Thread Length (l2) 25.00 mm
- Head Width (W) 9.00 mm
- Eye Width (W1) 12.00 mm
- Head Diameter (D) 22.00 mm
- Centre Height (l1) 42.00 mm
- Grease Nipple Yes
- Material Bronze Lined Steel
Product Compliance and Data
Additional Resources
Cross References
- MTR BNM8
- IKO POS8
