KFL08 - Datasheet
MBA
Category Information

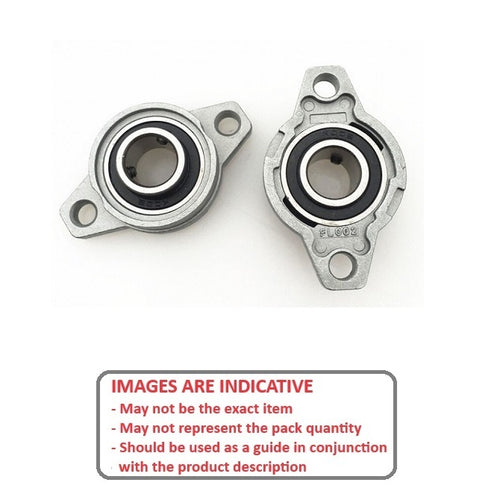

Housing and Bearing Assembly - Flanged 2 Bolt - Rigid - AluminiumAluminium Non Aligning Flanged 2 Bolt Housing Assembly. Starting at 8mm bore size, aluminium silver series housings with removable chrome steel bearing
Product Data

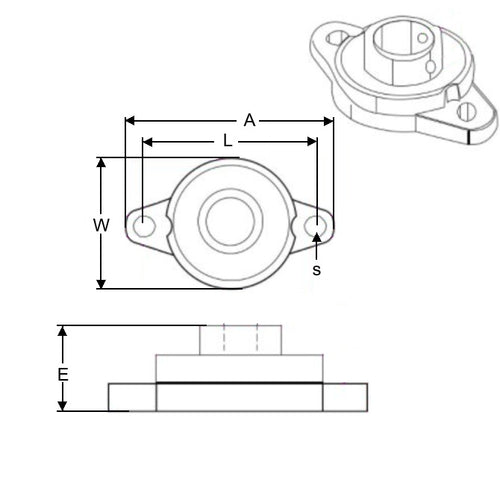

- Nominal Shaft Size
:
8.0
mm
(Equiv. 0.315 in.) - Width (W)
26.0
mm
+/- 1.0
(Equiv. 1.024 in.) - Overall Length (A)
48.0
mm
(Equiv. 1.89 in.) - Overall Height (E) 11.5 mm
- Bolt Hole Size (s) 4.8 mm
- Bolt Hole Centres (L) 37.0 mm +/- 0.5
- Material Aluminium
