SHX-TP-0417C-06-035-A - Datasheet

MBA

Product Data

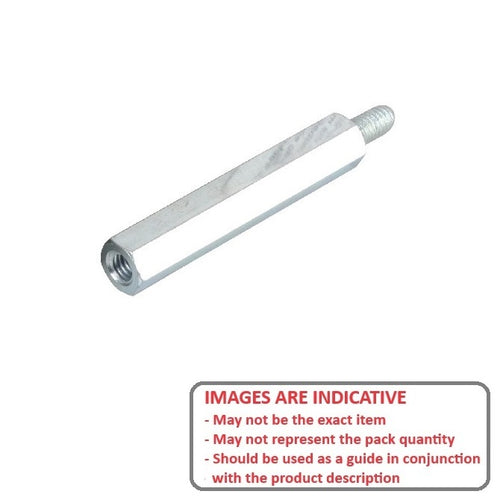

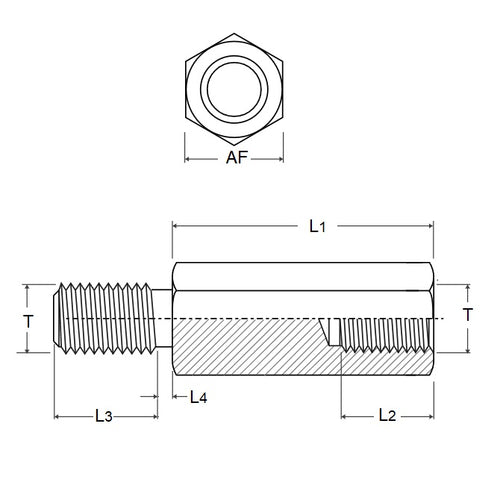

• Thread Size : 8-32 UNC (4.17mm)
• Stud Length (L3) 9.53 mm
  (Equiv. 0.375 in.)
• Base Length (L1) 25.40 mm
  (Equiv. 1 in.)
• Across Flats (A/F) 6.35 mm
• Bore Thread Length (L2) 11.11 mm
• Finish Plain
• Material Aluminium

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
