IN-EP-042C-080-B - Datasheet
MBA
Category Information

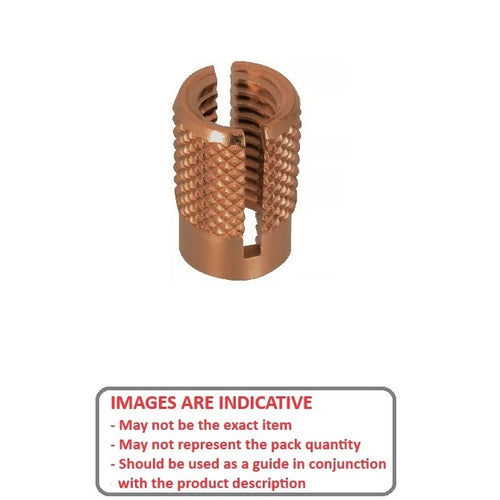

Inserts - Expansion - Press In - Brass - StandardStandard Brass Press In Expansion Inserts. Use for cored or drilled holes in plastics. Designed to replace molded in inserts and threads in plastic casings. Also known as threaded inserts.
- Material : Brass.
- Easiest inserts to install - simply push into a pre-moulded hole.
- Used with plastics or other materials. Material must be strong enough to withstand the expansion of the insert.
- The insertion of the screw locks the external knurls into the wall of the hole.
- Provides excellent thread durability. Not as strong as wind-in inserts.
Product Data
- Internal Thread : 8-32 UNC (4.17mm)
- Rec. Hole Diameter
5.53
mm
+ 0.000 / - 0.254

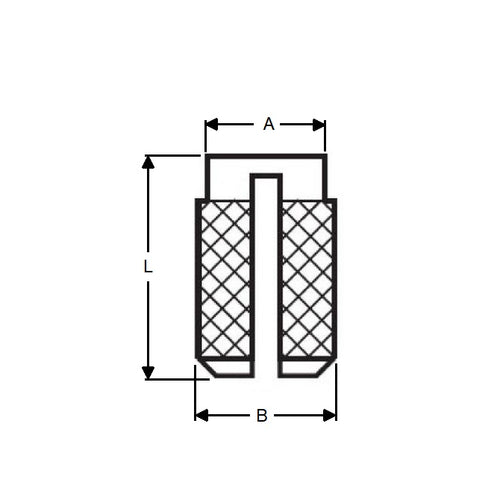

(Equiv. 0.218 in.) - Length (L)
7.95
mm
+/ - 0.25
(Equiv. 0.313 in.) - Knurled OD (B) 5.54 mm +/- 0.102
- 5.84
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- INEP0417C080B
