THS042C-010-K-NY - Datasheet
MBA
Category Information

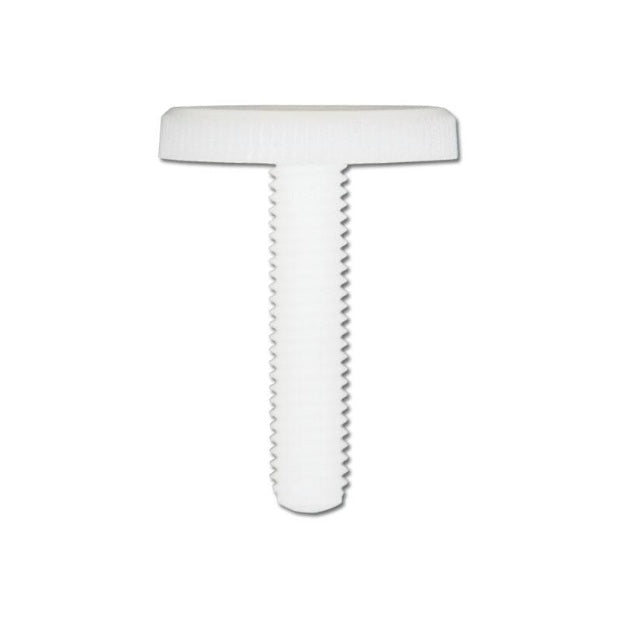

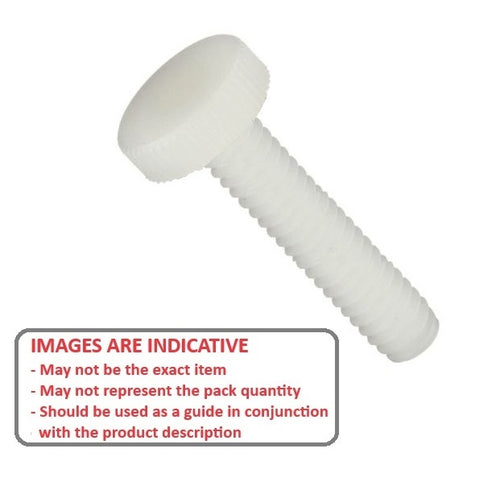

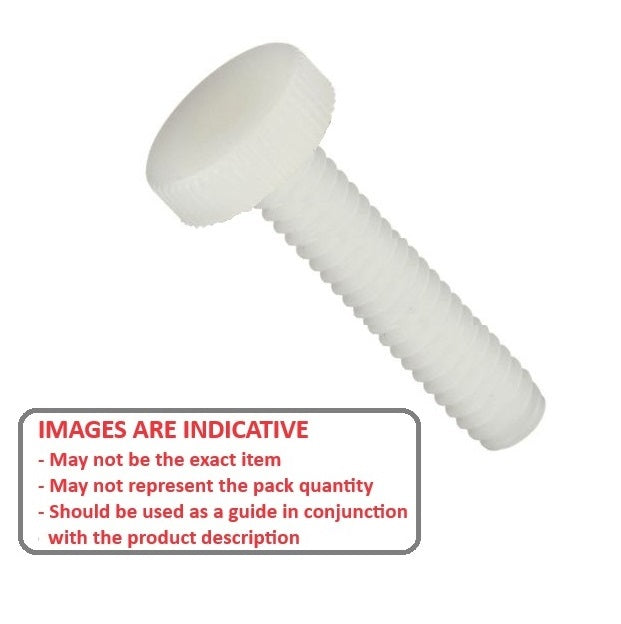

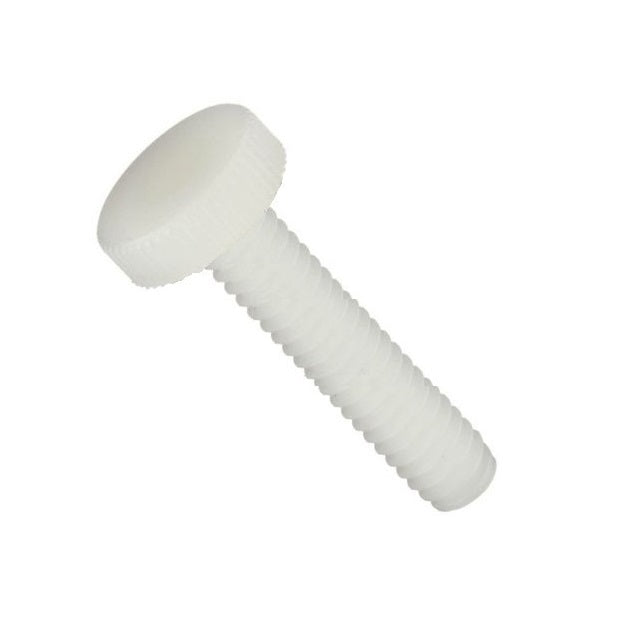

Screws - Thumb - Knurled - NylonNylon Knurled Thumb Screws. Nylon knurled head thumb screws
- An expanded range may be available on special order. Please enquire.
Product Data

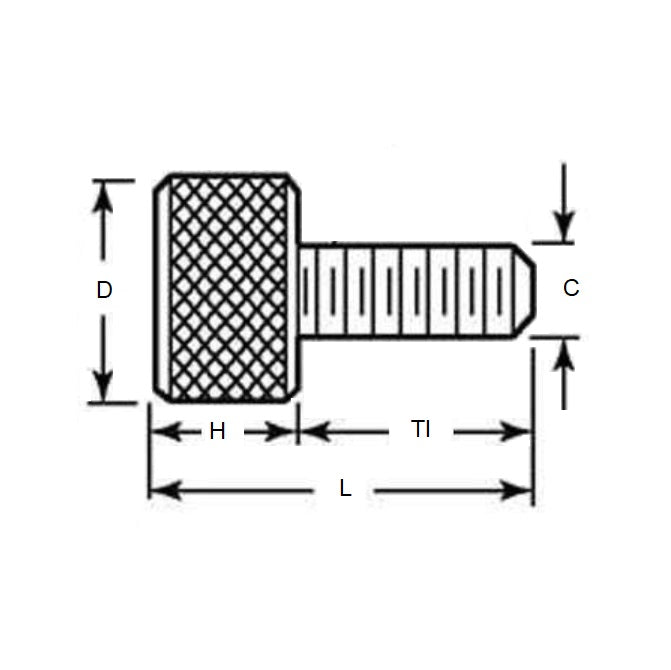

- Thread Size (C) : 8-32 UNC (4.17mm)
- Thread Length (Tl)
9.53
mm
(Equiv. 0.375 in.) - Overall Length (L)
14.29
mm
(Equiv. 0.563 in.) - Head Diameter (D) 9.53 mm
- Head Height (H) 4.76 mm
- Material NYLATRON GS (PA66 + MoS2)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 94955A020
- NC110
- NC-110
