THS042C-016-K-3-SHL - Datasheet

MBA

Product Data

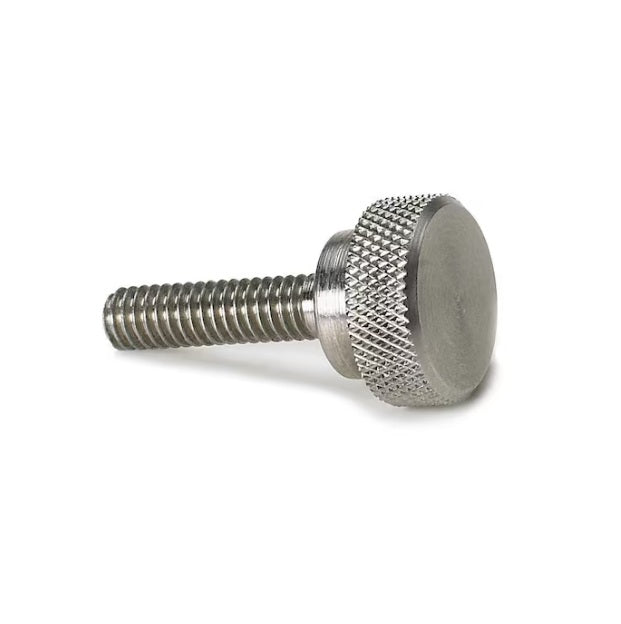

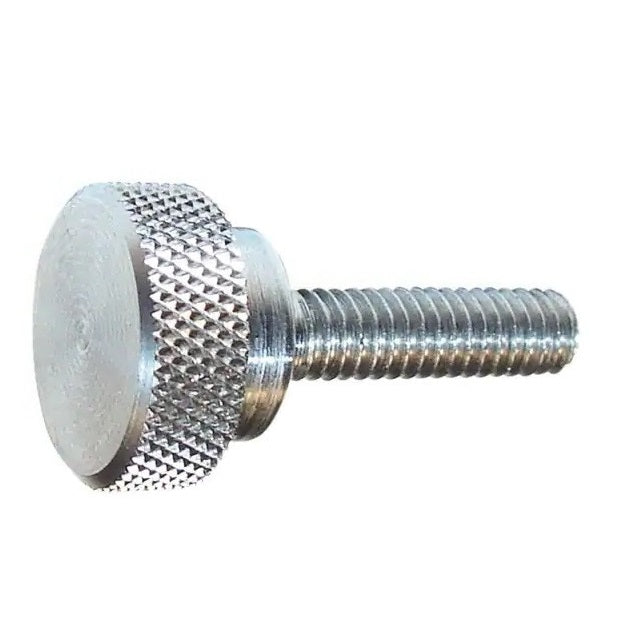

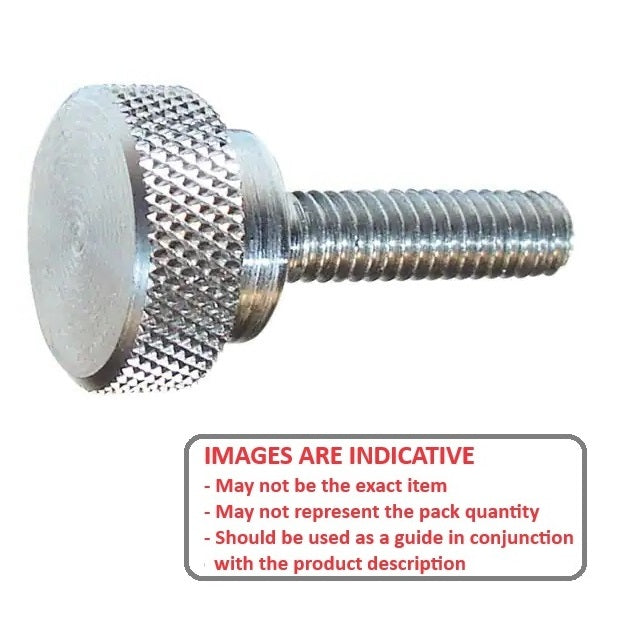

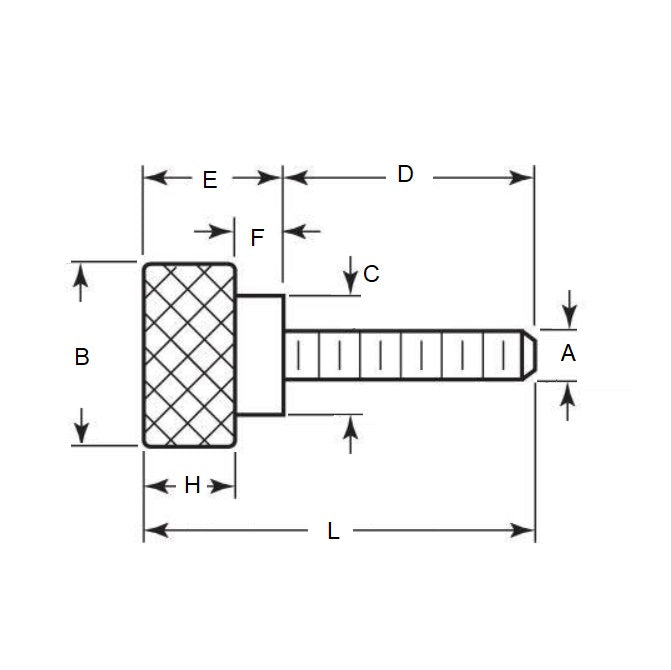

• Thread Size (A) : 8-32 UNC (4.17mm)
• Thread Length (D) 7.94 mm
  (Equiv. 0.313 in.)
• Overall Length (L) 15.88 mm
  (Equiv. 0.625 in.)
• Head Diameter (B) 11.11 mm
• Shoulder Diameter (C) 9.53
• Shoulder Length (F) 2.38
• Head Height incl Shoulder (E) 7.94 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
