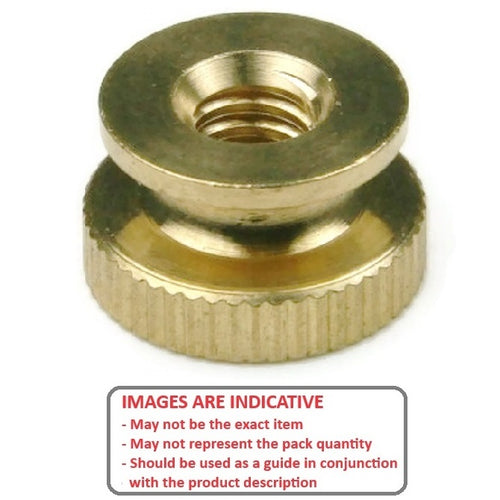

NT042C-THC-BR - Datasheet

MBA

Product Data

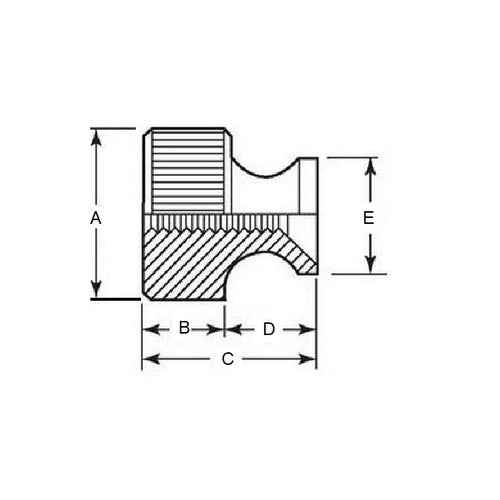

• Thread Size : 8-32 UNC (4.17mm)
• Overall Length (C) 7.1 mm
  (Equiv. 0.28 in.)
• Head Width (B) 3.18 mm
  (Equiv. 0.125 in.)
• Head Diameter (A) 11.11 mm
• Collar Diameter (E) 9.53 mm
• Collar Height (D) 3.97 mm
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
