SS042C-0079-AS-DP - Datasheet
MBA
Category Information

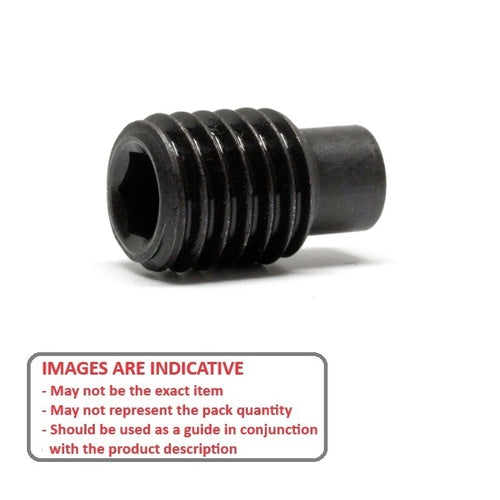

Socket Set Screws - Dog Point Carbon SteelDog Point Carbon Steel Socket Set Screws. Dog point grub screws
- Socket drive grub screws with a dog point tip.
- Set screw with a cylindrical, unthreaded "dog" tip that fits into a pre-drilled hole, slot, or milled flat in a second part to permanently locate and secure two components together.
- Commonly used in machinery to prevent movement, such as locking a gear onto a shaft.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 8-32 UNC (4.17mm)
- Thread Length (L)
6.9
mm
(Equiv. 0.272 in.) - Type Dog Point
- Overall Length (L + L1) 7.9 mm
- Tip Diameter (d) 2.6 - 2.8 mm
- Tip Length (L1) 1.0 mm
- Hex Key Size 1.98
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Carbon Steel
