SK042C-038-PH-S4 - Datasheet
Brighton Best
Category Information

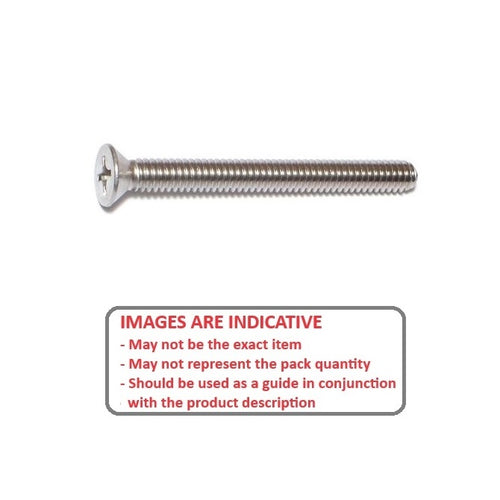

Screws - Countersunk - Phillips - 304 Stainless304 Stainless Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 8-32 UNC (4.17mm)
- Overall Length (L)
38.1
mm
(Equiv. 1.5 in.) - Material 304 Stainless
- Max Head Diameter (A) 7.92 mm
- Max Head Height 2.54 mm
- Type Countersunk / Philips
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 771336
- 91771A203
- Small Parts MFX-832-24
- MFX83224
