Miniature Bearings Australia
THS042C-021-K-3-N - Datasheet
MBA
Category Information

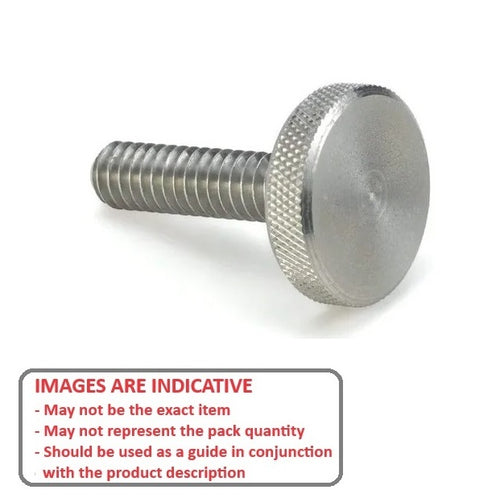

Screws - Thumb - Knurled - Stainless - Slim HeadSlim Head Stainless Knurled Thumb Screws. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

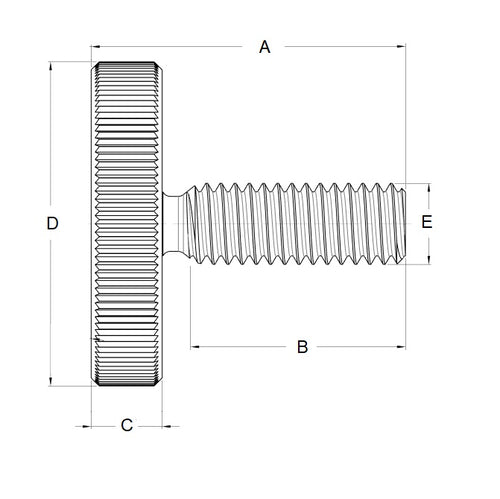

- Thread Size (E) : 8-32 UNC (4.17mm)
- Thread Length (B)
20.64
mm
(Equiv. 0.813 in.) - Overall Length (A)
38.10
mm
(Equiv. 1.5 in.) - Head Diameter (D) 6.35 mm
- Head Type Knurled
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- KTS8262
- KTS-8262
