PLST-042C-111-AC-007 - Datasheet
MBA
Category Information

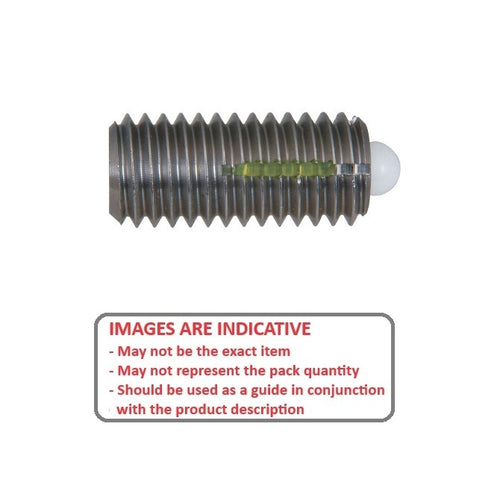

Plungers - Spring - No Handle - Steel - Acetal NoseAcetal Nose Steel No Handle Spring Plungers. Steel body and acetal nose
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

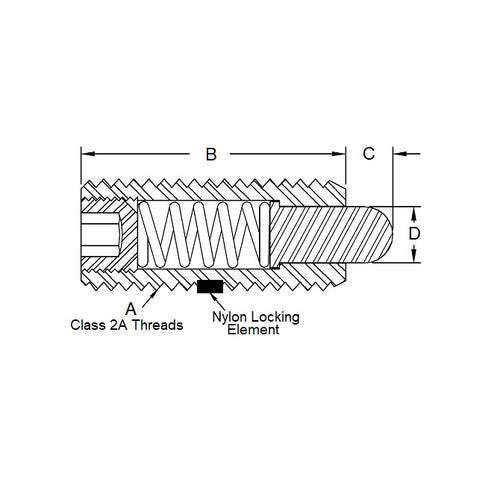

- Thread Size (A) : 8-32 UNC (4.17mm)
- Thread Length (B)
11.1
mm
(Equiv. 0.437 in.) - Initial Pressure (F1) 2.2 N
- Final Pressure (F2) 6.7 N
- Tip Diameter (D) 1.8 mm
- Tip Length (C) 1.3 mm
- Body Length (B) 11.1 mm
- Drive Slotted
- Material Steel Body with Acetal Nose
Product Compliance and Data
Additional Resources
Cross References
- 8499A49
- LNK-1A
- LNK1A
