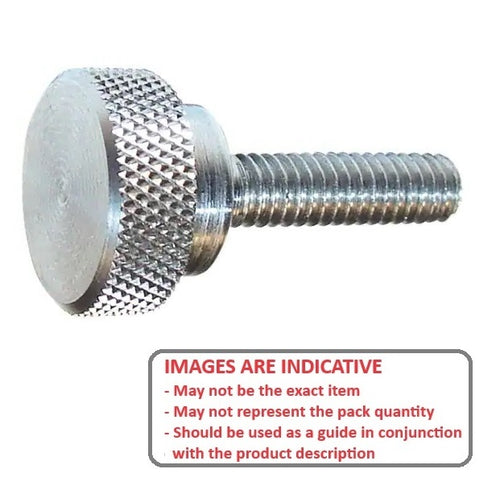

THS042C-019-K-3-SHL - Datasheet

MBA

Product Data

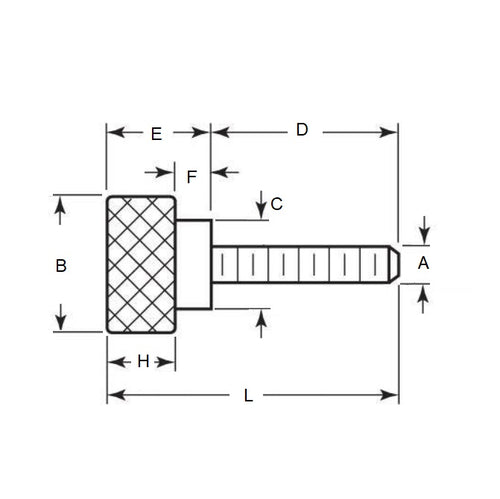

• Thread Size (A) : 8-32 UNC (4.17mm)
• Thread Length (D) 11.11 mm
  (Equiv. 0.437 in.)
• Overall Length (L) 19.05 mm
  (Equiv. 0.75 in.)
• Head Diameter (B) 12.70 mm
• Shoulder Diameter (C) 9.53
• Shoulder Length (F) 2.38
• Head Height incl Shoulder (E) 7.94 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• PDF Screws Catalogue

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 91830A303
• KTS4303
• KTS-4303
