IN-TP-042C-10-WHL - Datasheet

MBA

Category Information

Inserts - Self Tapping - For Wood - Hex Drive - Standard

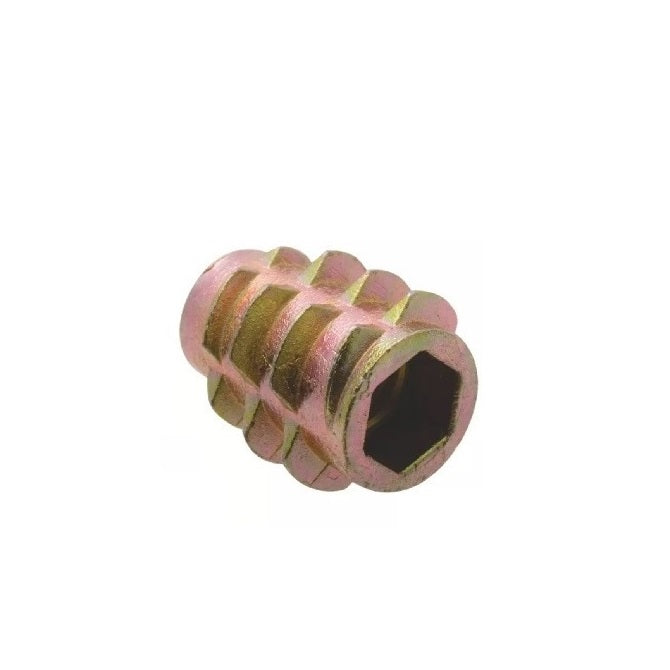

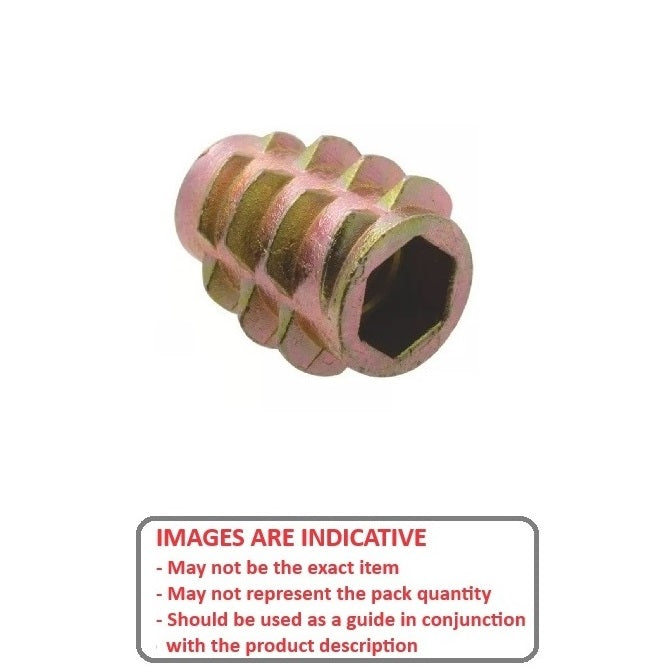

Standard Hex Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into preformed or predrilled holes and cut own threads into the wall of permanent installations.

  • Threaded bushing with external threads that cuts its own internal threads into a pre-drilled hole.
  • Creates a permanent, wear-resistant, and strong machine thread in materials such as aluminum, brass, cast iron, and plastics, without the need for a pre-tapped hole.
  • Used for strengthening materials, providing durable fastening points for machine screws, and repairing damaged threads.
  • Die Cast Zinc Alloy. Knife thread cuts easily into a predrilled hole.
  • Inexpensive inserts for use in ready to assemble furniture, drawer pulls etc.
  • Installs with a hex wrench

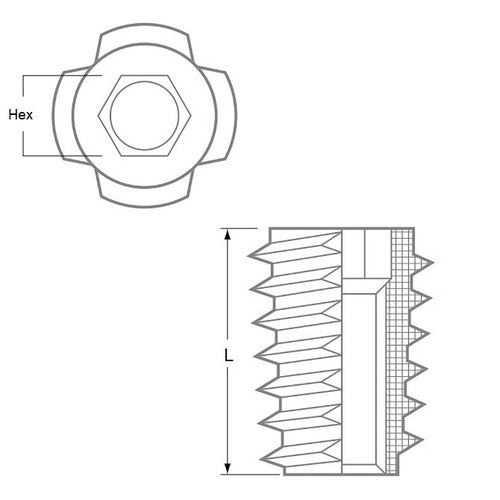

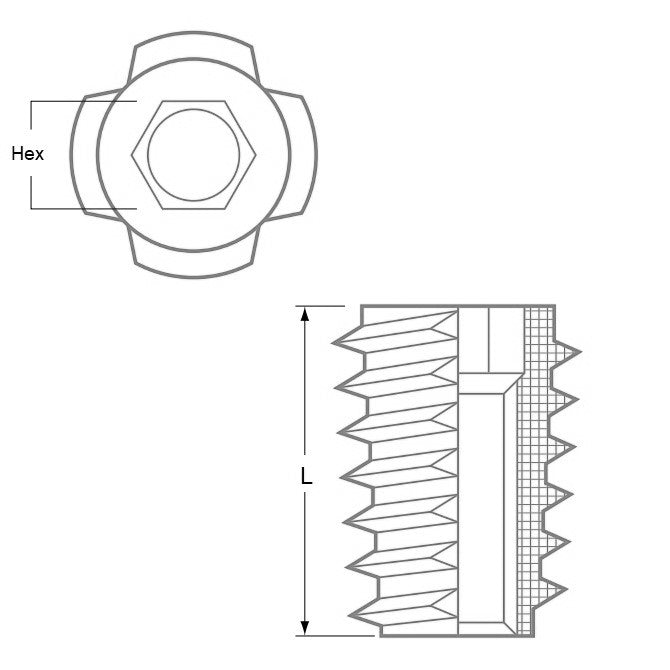

Product Data

  • Internal Thread : 8-32 UNC (4.17mm)
  • Rec. Hole Diameter 6.0 mm
    (Equiv. 0.236 in.)
  • Length (L) 10.008 mm
    (Equiv. 0.394 in.)
  • Hex Size 4.0
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • INTP0417C100WH
