BF0040-0080-0060-DP - Datasheet
MBA
Category Information

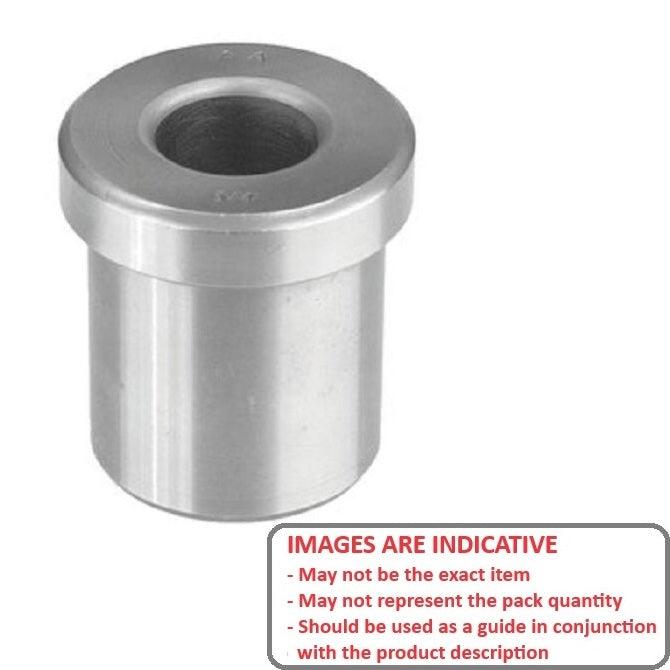

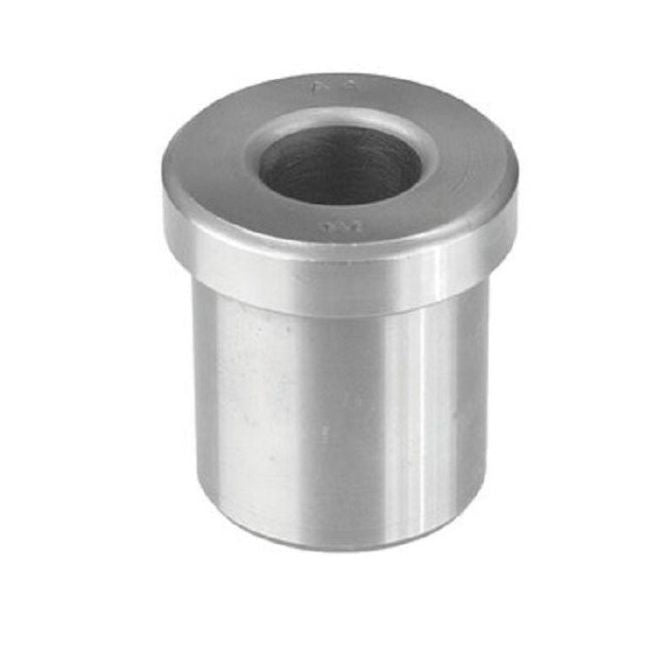

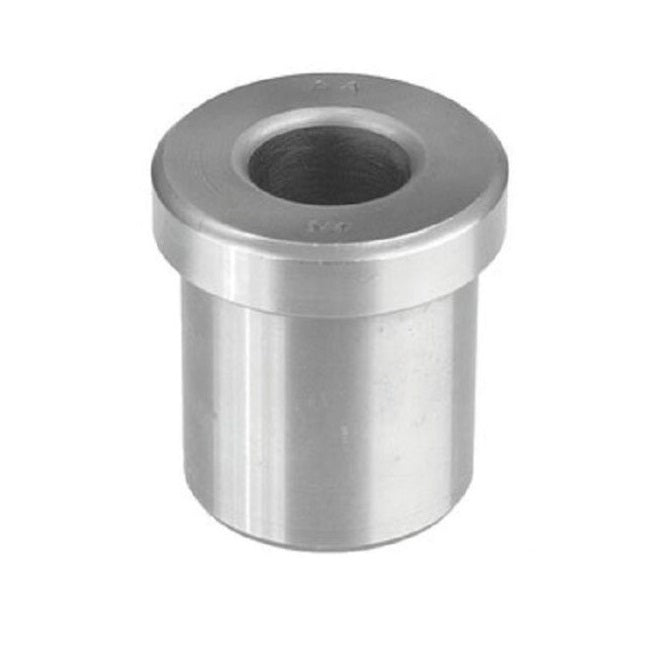

Bushings - Drill - Flanged - Press FitPress Fit Flanged Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data

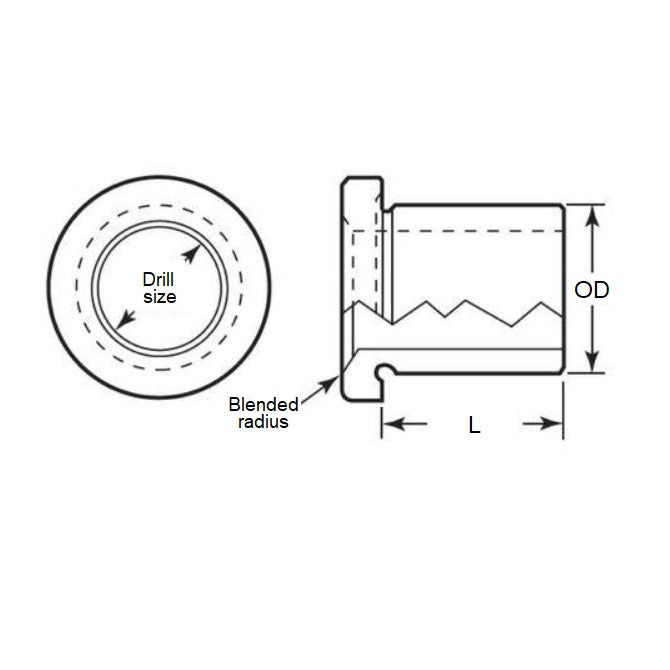

- Outside Diameter (OD)
:
8
mm
(Equiv. 0.315 in.) - Drill Size
4.000
mm
(Equiv. 0.157 in.) - Length
6.000
mm
(Equiv. 0.236 in.) - Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-JBHM4-6
- CJBHM46
