RCL-080-153-ZD - Datasheet
MBA
Category Information

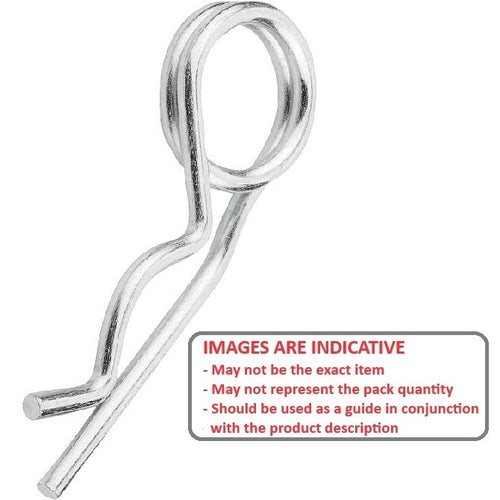

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

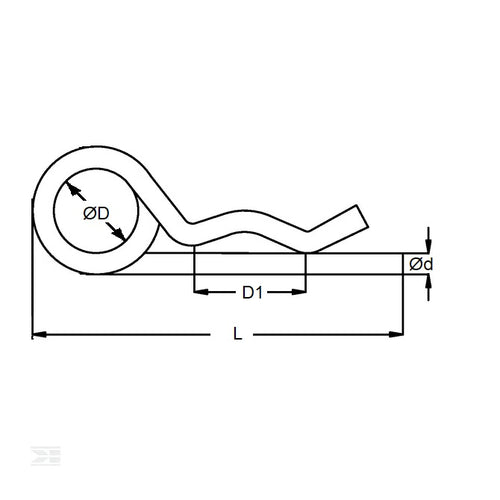

- Wire Thickness (d) : 8.00 mm
- Length (L) 153.0 mm
- Material Zinc Plated
- Drill Hole Size 9.00 mm
- Approx.Inside Eye (D) 28.00 to 32.00 mm
- Shaft Size Range 40.00 to 40.00 mm
- Approx. Bridge Length (D1) 50 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- RPD8130
- RPD8-130
