CMB008-08-030M-R60 - Datasheet

MBA

Category Information

Mounts - Buffer - Male - Round

Round Male Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Nom. Body Diameter (D) : 8.0 mm
    (Equiv. 0.315 in.)
  • Body Height (H) 8.0 mm
    (Equiv. 0.315 in.)
  • Thread Size (G) M3x0.5
  • Shore Hardness 60
  • Thread Length (L1) 6.0 mm
  • Compression Load 10.5 Kg
  • Deflection 2.0 mm
  • Configuration Male to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • Misumi C-VE0808-06
  • CVE080806
  • 0808MFB0660
  • 0808MFB06-60
View full details

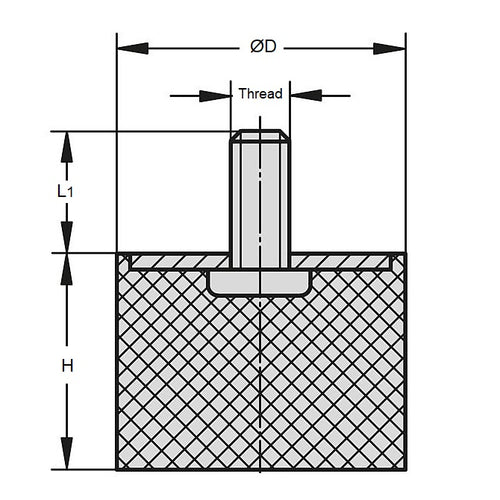

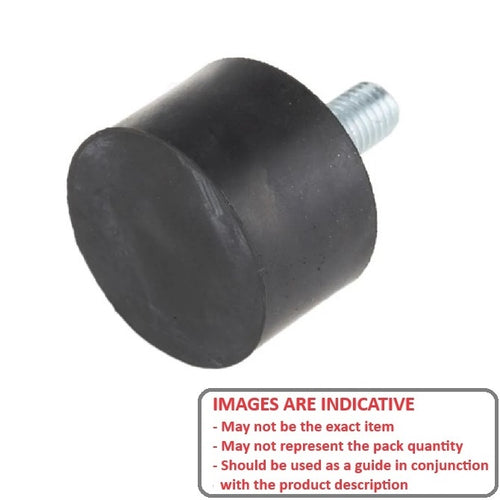

CMB008-08-030M-R60DiagramCMB008-08-030M-R60Image
