CCE-00700-S15 - Datasheet
MBA
Category Information

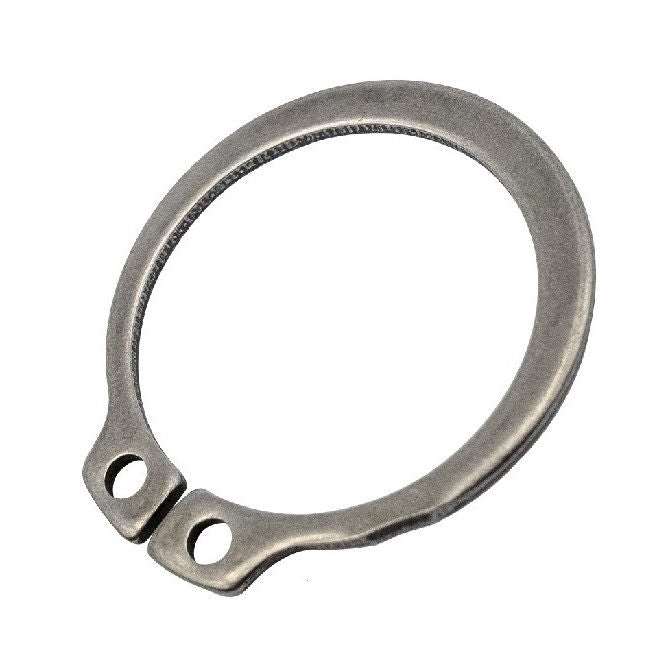

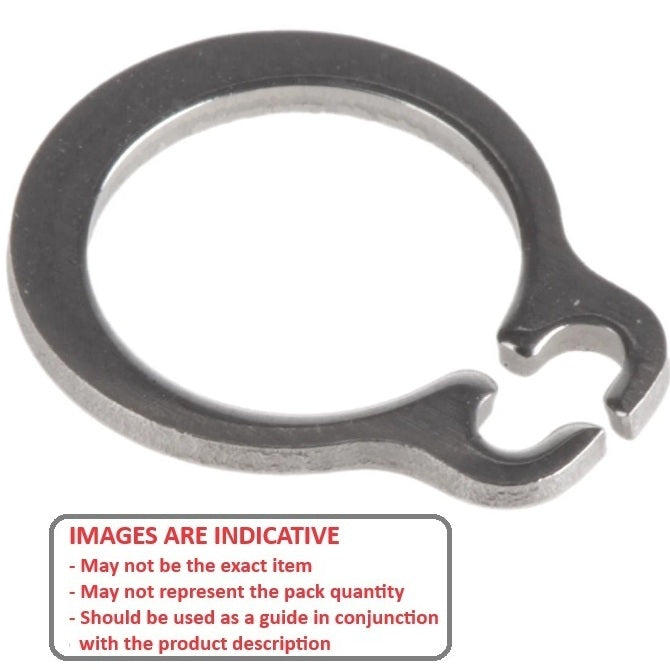

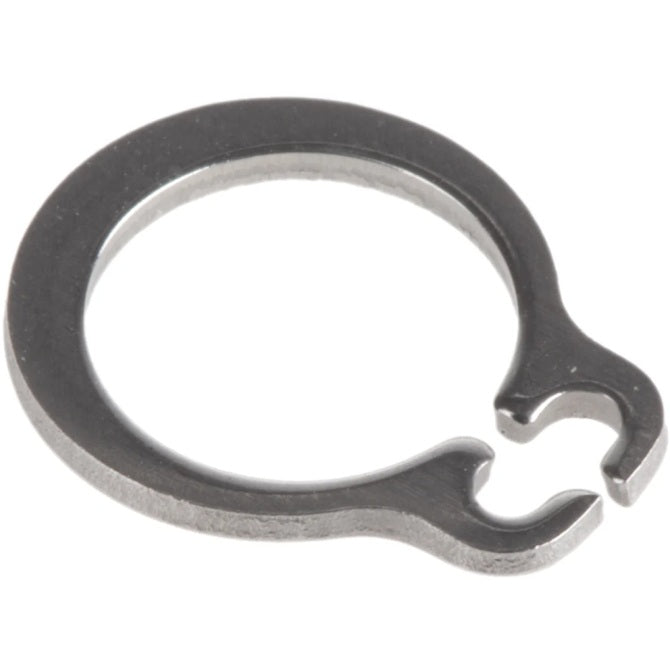

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
7.00
mm
(Equiv. 0.276 in.) - Clip Thickness (T)
0.80
mm
+ 0.00 / - 0.06
(Equiv. 0.031 in.) - Groove Dia. (Dg)
6.70
mm
+ 0.00 / - 0.05
(Equiv. 0.264 in.) - Approx. Loose Circlip ID (A) 6.50 mm
- Groove Width (W) 0.90 mm
- Clearance on Shaft (C1) 13.50 mm
- Clearance in Groove (C1) 12.90 mm
- Min. Lug Diameter (h) 1.20 mm
- Min. Extension (n) 0.50
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-007-SS
- 90967A115
- Seeger A-007-SS
- Seeger A7X0.8-411
- Bossard BN818-007-SS
- Waldes D1400-007-SS
- NoCor DSH-007-SS
- Rotor Clip DSH-007-SS
- DSH007SS
- 14000070KSF
- 1400-0070KSF
- D14000070KSF
- D1400-0070KSF
- D1400007SS
- A7X08411
- A007SS
- 471007SS
- BN818007SS
