Miniature Bearings Australia

S607-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

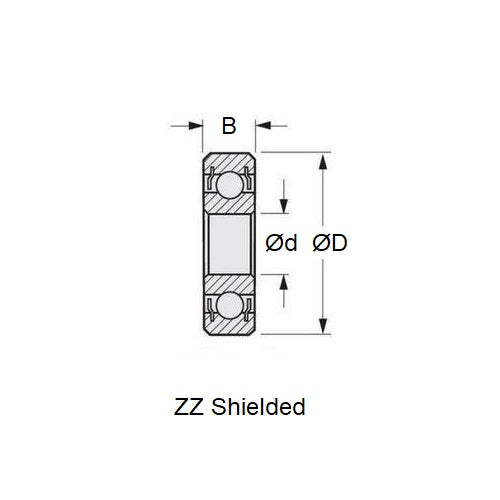

ID (d) : 7.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.276 in.)
OD (D) 19.000 mm _{+ 0.000 / - 0.010}
(Equiv. 0.748 in.)
Width (B) 6.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.236 in.)
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 607
Limiting Speed 36000
Cage Type Ribbon
Static Load Rating KGf 91
Dynamic Load Rating KGf 238
Radii 0.30 mm
Inner Shoulder (UI) 9.00mm
Outer Shoulder (UO) 16.50 mm
Number of Balls 6
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
ASP - 40 All Models - Bearing 7-19-6mm
ASP - 46 All Models - Bearing 7-19-6mm
Bluebird - 28 All Models - Bearing 7-19-6mm
CMB - 15 - Bearing 7-19-6mm
CMB - Valvola 3.5CC - 35 - Bearing 7-19-6mm
Como - 40 All Models - Bearing 7-19-6mm
Como - All Models - Bearing 7-19-6mm
Duratrax - Torque 21 - 40 - Bearing 7-19-6mm
Enya - 4C - Old - 90 - Bearing 7-19-6mm
Enya - X - 45 - Bearing 7-19-6mm
Force - 61 All Models - Bearing 7-19-6mm
Force - E- 1501 Rear Exhaust EFRA - 21 - Bearing 7-19-6mm
Force - E-2101 Rear Exhaust - 0.15 - Bearing 7-19-6mm
Force - E-2106 Rear Exhaust - 0.21 - Bearing 7-19-6mm
GS General Silicone - R21B01P - 76 - Bearing 7-19-6mm
HP - 46 All Models - Bearing 7-19-6mm
HP - VT 4C - 49 - Bearing 7-19-6mm
Irvine - New Turbo - 15 - Bearing 7-19-6mm
Mac - 28 - Bearing 7-19-6mm
Mac - Inboard - 67 - Bearing 7-19-6mm
Mac - OB PTO - 84 - Bearing 7-19-6mm
Magnum Power - XL - 36 - Bearing 7-19-6mm
Magnum Power - XL - 40 - Bearing 7-19-6mm
Magnum Power - XL - 52 - Bearing 7-19-6mm
MAZ - 91 All Models - Bearing 7-19-6mm
MDS - 40 All Models - Bearing 7-19-6mm
Moki - All - 61 - Bearing 7-19-6mm
MVVS - 1.6 All Models - Bearing 7-19-6mm
MVVS - GFR - 15 - Bearing 7-19-6mm
MVVS - GFS - 40 - Bearing 7-19-6mm
MVVS - Glow Engine - 1.5 - Bearing 7-19-6mm
MVVS - GRRT - 40 - Bearing 7-19-6mm
Ofna - Force 12 Red Head - 21 - Bearing 7-19-6mm
OPS - 12 - Bearing 7-19-6mm
OPS - 15 All Models - Bearing 7-19-6mm
OPS - 40 All Models - Bearing 7-19-6mm
OS - H Rear Rotor - 60 - Bearing 7-19-6mm
OS - RG - 61 - Bearing 7-19-6mm
OS - RG P - 21 - Bearing 7-19-6mm
OS - RG-M Marine - 21 - Bearing 7-19-6mm
OS - RG-MX - 21 - Bearing 7-19-6mm
OS - RGX P - 21 - Bearing 7-19-6mm
OS - RX - 21 - Bearing 7-19-6mm
OS - RX With 10C - 15 - Bearing 7-19-6mm
OS - TM - 91 - Bearing 7-19-6mm
OS - TZ - 12 - Bearing 7-19-6mm
OS - VG P - 21 - Bearing 7-19-6mm
Picco - 15 All Models - Bearing 7-19-6mm
Picco - 45 All Models - Bearing 7-19-6mm
Picco - 67 - Bearing 7-19-6mm
Picco - 90 All Models - Bearing 7-19-6mm
Picco - EXR Silver Blue Head - 67 - Bearing 7-19-6mm
PIP Marine - A90HP 4 BGS - 21 - Bearing 7-19-6mm
Power Racing - 21 - 90 - Bearing 7-19-6mm
Power Racing - 26 - 21 - Bearing 7-19-6mm
Stalker - Pro - 18 - Bearing 7-19-6mm
STS - 12 - 46 - Bearing 7-19-6mm
Super Tigre - 12 All Models - Bearing 7-19-6mm
Super Tigre - Bull Ring - 46 - Bearing 7-19-6mm
Super Tigre - G - 46 - Bearing 7-19-6mm
Super Tigre - G Sport W-Muffler - 91 - Bearing 7-19-6mm
Super Tigre - G21 - 49 - Bearing 7-19-6mm
Super Tigre - G51 Ring - 34 - Bearing 7-19-6mm
Super Tigre - GS40 Ring - 34 - Bearing 7-19-6mm
Super Tigre - GS45 ABC - 40 - Bearing 7-19-6mm
Super Tigre - S - 15 - Bearing 7-19-6mm
Super Tigre - S - 40 - Bearing 7-19-6mm
Super Tigre - SK - 18 - Bearing 7-19-6mm
Super Tigre - X - 21 - Bearing 7-19-6mm
Super Tigre - X - 60 - Bearing 7-19-6mm
Thunder Tiger - Marine - 12 - Bearing 7-19-6mm
Thunder Tiger - Pro - 120 - Bearing 7-19-6mm
Webra - 28 All Models - Bearing 7-19-6mm
Webra - Heli - 2.2 - Bearing 7-19-6mm
Webra - Speed Heli MOD 1023H - 61 - Bearing 7-19-6mm
Webra - T46 All Models - Bearing 7-19-6mm

Cross References

SCHICK 1603
Stainless 607ZZMC3
Stainless 607-ZZ-MC3
Shielded S607 / 6
GRW S607-2Z
MPB SEL7RHH
Similar Part SS607
SHIMANO TT0033A
ADR W607-ZZ
W607ZZ
SS-R1970-ZZ
SS607-ZZ
SS607ZZ
SSR1970-ZZ
SSR1970ZZ
DDR1970ZZ
DD-R1970-ZZ
DDR1970-ZZ
RV719X
S607SS
S6072Z
S607-ZZMC3
S607ZZMC3
607 Basic Size Ref
