Miniature Bearings Australia

607-ZZ-MC3 - Datasheet

MBA

Category Information

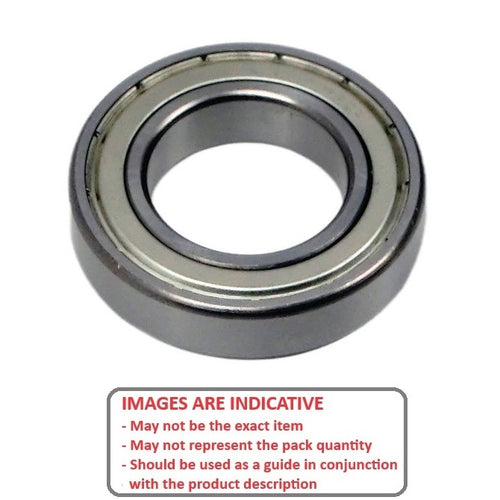

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

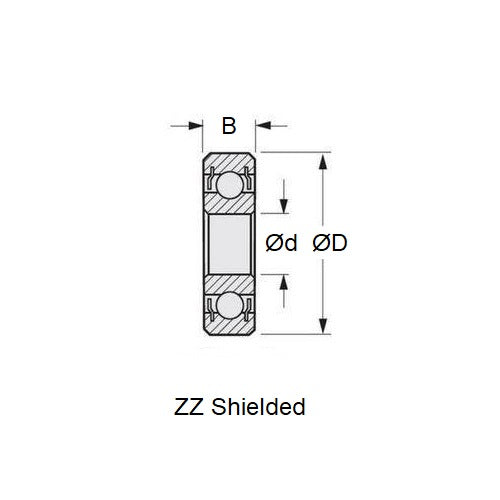

ID (d) : 7.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.276 in.)
OD (D) 19.000 mm _{+ 0.000 / - 0.010}
(Equiv. 0.748 in.)
Width (B) 6.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.236 in.)
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 607
Limiting Speed 36000
Cage Type Ribbon
Static Load Rating KGf 91
Dynamic Load Rating KGf 238
Radii 0.30 mm
Inner Shoulder (UI) 9.00mm
Outer Shoulder (UO) 16.50 mm
Number of Balls 6
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Car Parts
RC Helicopter Parts
RC Nitro Engine Parts
Associated - RC500 Gas 4WD - Bearing 7-19-6mm
Corally - C4 - Bearing 7-19-6mm
Delta - P2 1/8 Gas - Bearing 7-19-6mm
Delta - P4 1/8 Gas - Bearing 7-19-6mm
Mugen - Sport 1/8 Gas - Bearing 7-19-6mm
Ofna - Pirate 1/8 Gas - Bearing 7-19-6mm
Ofna - Ultra LX COMP RTR - Bearing 7-19-6mm
Ofna - Ultra LX Pro RTR - Bearing 7-19-6mm
TSK - Miscellaneous Parts To suit - Bearing 7-19-6mm
ASP - 40 - Front Bearing 7-19-6mm
ASP - 40 All Models - Bearing 7-19-6mm
ASP - 46 - Front Bearing 7-19-6mm
ASP - 46 All Models - Bearing 7-19-6mm
ASP - 52 Old - Front Bearing 7-19-6mm
Associate Electrics - AE.21 - 0.21 - Bearing 7-19-6mm
Bluebird - 28 All Models - Bearing 7-19-6mm
CMB - 15 - Bearing 7-19-6mm
CMB - 21 - Bearing 7-19-6mm
CMB - 21 All Models - Bearing 7-19-6mm
CMB - EVO Marine - 45 - Bearing 7-19-6mm
CMB - Lower Unit - 67 - Bearing 7-19-6mm
CMB - LS Green Head Marine - 45 - Bearing 7-19-6mm
CMB - Old - 45 - Bearing 7-19-6mm
CMB - RS - 35 - Bearing 7-19-6mm
CMB - TT Marine - 21 - Bearing 7-19-6mm
CMB - Valvola 3.5CC - 35 - Bearing 7-19-6mm
Como - 21 All Models - Bearing 7-19-6mm
Como - All Models - Bearing 7-19-6mm
Duratrax - Torque 21 - 40 - Bearing 7-19-6mm
Dynamite - Mach 26 - 29 - Bearing 7-19-6mm
Dynamite - Mach 427 - 21 - Bearing 7-19-6mm
Enya - 40 - Front Bearing 7-19-6mm
Enya - 4C - Old - 90 - Bearing 7-19-6mm
Enya - X - 45 - Bearing 7-19-6mm
Fantom - FR27 - 40 - Bearing 7-19-6mm
Force - 61 All Models - Bearing 7-19-6mm
Force - All Other Rear Exhaust - 61 - Bearing 7-19-6mm
Force - E- 1501 Rear Exhaust EFRA - 21 - Bearing 7-19-6mm
Force - E-1503 Rear Exhaust Not EFRA - 0.21 - Bearing 7-19-6mm
Force - E-2101 Rear Exhaust - 0.15 - Bearing 7-19-6mm
Force - E-2106 Rear Exhaust - 0.15 - Bearing 7-19-6mm
GS General Silicone - 15R - 47 - Bearing 7-19-6mm
GS General Silicone - R21B01P - 76 - Bearing 7-19-6mm
GS General Silicone - R25MT - 0.15 - Bearing 7-19-6mm
HP - 46 All Models - Bearing 7-19-6mm
HP - Old/1975 - 21 - Bearing 7-19-6mm
HP - VT 4C - 61 - Bearing 7-19-6mm
HPI - 21 - Bearing 7-19-6mm
HPI - 49 - Bearing 7-19-6mm
Irvine - New Turbo - 72 - Bearing 7-19-6mm
LRP Nitro - Truggy 28 - 15 - Bearing 7-19-6mm
LRP Nitro - Z.28R Spec 2 Pullstart - 12 - Bearing 7-19-6mm
Mac - 28 - Bearing 7-19-6mm
Mac - Inboard - 67 - Bearing 7-19-6mm
Mac - OB PTO - 84 - Bearing 7-19-6mm
Mac - Outboard - 21 - Bearing 7-19-6mm
Magnum - 40XL - 2 Stroke - Front Bearing 7-19-6mm
Magnum - 46 - 2 Stroke - Front Bearing 7-19-6mm
Magnum - 53 - 2 Stroke - Front Bearing 7-19-6mm
Magnum Power - XL - 32 - Bearing 7-19-6mm
Magnum Power - XL - 36 - Bearing 7-19-6mm
Magnum Power - XL - 46 - Bearing 7-19-6mm
MAZ - 91 All Models - Bearing 7-19-6mm
MDS - 58 All Models - Bearing 7-19-6mm
Moki - All - 50 - Bearing 7-19-6mm
MVVS - 61 All Models - Bearing 7-19-6mm
MVVS - GFR - 77 - Bearing 7-19-6mm
MVVS - GFS - 15 - Bearing 7-19-6mm
MVVS - Glow Engine - 61 - Bearing 7-19-6mm
MVVS - GRRT - 1.5 - Bearing 7-19-6mm
Nova Rossi - LONG Stroke - 15 2.5CC - Bearing 7-19-6mm
Nova Rossi - Nova - 28 4.66CC - Bearing 7-19-6mm
Ofna - 21 - 15 2.5CC - Bearing 7-19-6mm
Ofna - Force 12 Red Head - 15 2.5CC - Bearing 7-19-6mm
OPS - 12 - Bearing 7-19-6mm
OPS - 15 All Models - Bearing 7-19-6mm
OPS - 35 All Models - Bearing 7-19-6mm
OPS - 90 - Rotor Shaft Bearing
OPS - 90 All Models - Bearing 7-19-6mm
OPS - Old - 80 - Bearing 7-19-6mm
OPS - Pro - 30 - Bearing 7-19-6mm
OPS - Rotor BRGS - 60 - Bearing 7-19-6mm
Orion - Wasp.28 - 90 - Bearing 7-19-6mm
OS - 21 RX-B RX-M - Front Bearing 7-19-6mm
OS - 40 H - 2 Stroke - Front Bearing 7-19-6mm
OS - FS RC 4C Non Surpass - 61 - Cam Shaft Bearing 7-19-6mm
OS - FS90 - 4 Stroke W-Muffler - Camshaft Centre Bearing 7-19mm
OS - H 40 P Old - 40 - Bearing 7-19-6mm
OS - H Rear Rotor - 60 - Bearing 7-19-6mm
OS - Max-H 40 - Front Bearing 7-19-6mm
OS - Outboard Marine - 120 - Bearing 7-19-6mm
OS - RG - 61 - Bearing 7-19-6mm
OS - RG P - 61 - Bearing 7-19-6mm
OS - RG-M Marine - 21 - Bearing 7-19-6mm
OS - RG-MX - 21 - Bearing 7-19-6mm
OS - RGX P - 21 - Bearing 7-19-6mm
OS - RX - 21 - Bearing 7-19-6mm
OS - RX With 10C - 140 - Bearing 7-19-6mm
OS - RX-B - 15 - Bearing 7-19-6mm
OS - RX-M Marine - 61 - Bearing 7-19-6mm
OS - TM - 91 - Bearing 7-19-6mm
OS - TZ - 12 - Bearing 7-19-6mm
OS - VG P - 46 - Bearing 7-19-6mm
OS - XM Marine Outboard - 21 - Bearing 7-19-6mm
Picco - 45 All Models - Bearing 7-19-6mm
Picco - 49 - Bearing 7-19-6mm
Picco - 61 All Models - Bearing 7-19-6mm
Picco - 80 All Models - Bearing 7-19-6mm
Picco - 90 All Models - Bearing 7-19-6mm
Picco - EXR Silver Blue Head - 80 - Bearing 7-19-6mm
Picco - P5 - 21 - Bearing 7-19-6mm
Picco - P5 EXR - 27 - Bearing 7-19-6mm
Picco - P6 - 21 - Bearing 7-19-6mm
PIP Marine - A90HP 4 BGS - 28 - Bearing 7-19-6mm
Power Racing - 21 - 21 - Bearing 7-19-6mm
Power Racing - 26 - 90 - Bearing 7-19-6mm
RB - 15 All Models - Bearing 7-19-6mm
RB - X - 21 - Bearing 7-19-6mm
Rossi - Blackhead - 65 - Bearing 7-19-6mm
Rossi - Revo Marine - 21 - Bearing 7-19-6mm
SH - SH-28 - 12 - Bearing 7-19-6mm
SH - SH-28 Pro - 21 - Bearing 7-19-6mm
Stalker - Pro - 27 - Bearing 7-19-6mm
STS - 12 - 46 - Bearing 7-19-6mm
Super Tigre - 12 All Models - Bearing 7-19-6mm
Super Tigre - Bull Ring - 31 - Bearing 7-19-6mm
Super Tigre - G - 29 - Bearing 7-19-6mm
Super Tigre - G - 46 - Bearing 7-19-6mm
Super Tigre - G Sport W-Muffler - 60 - Bearing 7-19-6mm
Super Tigre - G21 - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - G21 - 49 - Bearing 7-19-6mm
Super Tigre - G29 - Front Bearing 7-19-6mm
Super Tigre - G34 - 20 - Bearing 7-19-6mm
Super Tigre - G51 Ring - 35 - Bearing 7-19-6mm
Super Tigre - G60 - Front Bearing 7-19-6mm
Super Tigre - GS40 - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - GS40 Ring - 90 - Bearing 7-19-6mm
Super Tigre - GS45 - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - GS45 ABC - 34 - Bearing 7-19-6mm
Super Tigre - Marine - 45 - Bearing 7-19-6mm
Super Tigre - RE - 45 - Bearing 7-19-6mm
Super Tigre - S - 15 - Bearing 7-19-6mm
Super Tigre - S - 71 - Bearing 7-19-6mm
Super Tigre - S40 ABC - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - S40 Ring - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - S45 Ring - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - S45K - 2 Stroke - Front Bearing 7-19-6mm
Super Tigre - SK - 18 - Bearing 7-19-6mm
Super Tigre - ST - 18 - Bearing 7-19-6mm
Super Tigre - ST - 45 - Bearing 7-19-6mm
Super Tigre - ST K - 56 - Bearing 7-19-6mm
Super Tigre - ST Old - 51 - Bearing 7-19-6mm
Super Tigre - ST51 - Front Bearing 7-19-6mm
Super Tigre - ST60 RC - Front Bearing 7-19-6mm
Super Tigre - ST-60K - CL RC W-Muffler - Front Bearing 7-19-6mm
Super Tigre - X - 15 - Bearing 7-19-6mm
Super Tigre - X - 21 - Bearing 7-19-6mm
Super Tigre - X - 60 - Bearing 7-19-6mm
Super Tigre - X21 - Front Bearing 7-19-6mm
Super Tigre - X40 - Front Bearing 7-19-6mm
Thunder Tiger - Marine - 12 - Bearing 7-19-6mm
Thunder Tiger - Pro - 120 - Bearing 7-19-6mm
Webra - 145 All Models - Bearing 7-19-6mm
Webra - Heli - 2.2 - Bearing 7-19-6mm
Webra - Speed Heli MOD 1023H - 61 - Bearing 7-19-6mm
Webra - T46 All Models - Bearing 7-19-6mm
XTM Racing - 24.7 Pro - 91 - Bearing 7-19-6mm
XTM Racing - 24.7 Pull Start - 18 - Bearing 7-19-6mm

Cross References

METABO 14311161
5972K621
GRW 607-2Z
WIB 607-2Z
WIB 607-Z
ADR 607-ZZ
NTN 607-ZZ
WIB 607-ZZ-C3-LDS18
Nachi 607-ZZC3P
Small Parts BMR-7
MPB EL7RHH
TSK F1111
BMR7
R1970-ZZ
R1970ZZ
607Z
607ZZC3LDS18
607-Z-C3-LDS18
607ZZC3P
607SS
607ZZMC3
607-ZZMC3
6072Z
607ZC3LDS18
607 Basic Size Ref
