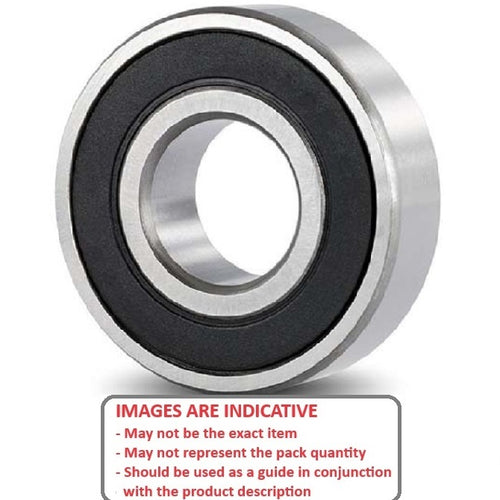

607-CSN-2RU-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings with steel races and ceramic balls.
  • For standard bearings, the balls are usually one of the first components to show wear.
  • Ceramic balls are harder than steel and do not wear as easily.
  • Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

High speed polyamide cage. Ceramic balls.

  • ID (d) : 7.000 mm
    (Equiv. 0.276 in.)
  • OD (D) 19.000 mm
    (Equiv. 0.748 in.)
  • Width (B) 6.000 mm
    (Equiv. 0.236 in.)
  • Precision Grade Economy
  • Closure Type 2RU
  • Bearing Type Radial
  • Material Stainless Steel AISI 440C - High Speed Polyamide Cage - Ceramic Si3N4 Balls
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 607
  • Limiting Speed 51984
  • Cage Type Polyamide
  • Static Load Rating KGf 69.2
  • Dynamic Load Rating KGf 180.9
  • Radii 0.30 mm
  • Inner Shoulder (UI) 9.00mm
  • Outer Shoulder (UO) 16.50 mm
  • Number of Balls 6
  • Clearance ECO (5 to 23)
  • Precision Grade ECO
  • Closure Type 2RU
  • Max Temperature 80 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP - 40 All Models - Bearing 7-19-6mm
  • ASP - 46 All Models - Bearing 7-19-6mm
  • Associate Electrics - AE.21 - 0.21 - Bearing 7-19-6mm
  • Axe Rossi - LSK - 21 - Bearing 7-19-6mm
  • Axe Rossi - R21 - 21 - Bearing 7-19-6mm
  • Axe Rossi - ROSSI - 21 - Bearing 7-19-6mm
  • Axial - Spec 1S Size 28 - Front Bearing 7-19-6mm
  • Axial - Spec 1S Size 32 - Front Bearing 7-19-6mm
  • Bluebird - 51 All Models - Bearing 7-19-6mm
  • CEN - Matrix Ringer TR.28 - 25 - Bearing 7-19-6mm
  • CMB - 15 - Bearing 7-19-6mm
  • CMB - 21 - Bearing 7-19-6mm
  • CMB - 45 All Models - Bearing 7-19-6mm
  • CMB - 67 All Models - Bearing 7-19-6mm
  • CMB - EV02 - 45 - Bearing 7-19-6mm
  • CMB - EVO Marine - 45 - Bearing 7-19-6mm
  • CMB - EVO2 - 35 - Bearing 7-19-6mm
  • CMB - Lower Unit - 45 - Bearing 7-19-6mm
  • CMB - LS Green Head Marine - 45 - Bearing 7-19-6mm
  • CMB - Old - 21 - Bearing 7-19-6mm
  • CMB - Red Head Marine - 35 - Bearing 7-19-6mm
  • CMB - RS - 21 - Bearing 7-19-6mm
  • CMB - RS - 35 - Bearing 7-19-6mm
  • CMB - TT Marine - 21 - Bearing 7-19-6mm
  • CMB - Valvola 3.5CC - 21 - Bearing 7-19-6mm
  • Como - 21 All Models - Bearing 7-19-6mm
  • Como - 40 All Models - Bearing 7-19-6mm
  • Duratrax - Torque 21 - 29 - Bearing 7-19-6mm
  • Dynamite - Mach 26 - 21 - Bearing 7-19-6mm
  • Dynamite - Mach 427 - 21 - Bearing 7-19-6mm
  • Dynamite - Mach 427 - 26 - Bearing 7-19-6mm
  • Dynamite - Platinum SG Off Road - 427 - Bearing 7-19-6mm
  • Dynamite - Platinum SG With PS Off Road - 0.21 - Bearing 7-19-6mm
  • Enya - 4C - Old - 90 - Bearing 7-19-6mm
  • Enya - X - 240 - Bearing 7-19-6mm
  • Fantom - FR27 - 46 - Bearing 7-19-6mm
  • Force - 61 All Models - Bearing 7-19-6mm
  • Force - All Other Rear Exhaust - 21 - Bearing 7-19-6mm
  • Force - E- 1501 Rear Exhaust EFRA - 0.21 - Bearing 7-19-6mm
  • Force - E-1503 Rear Exhaust Not EFRA - 0.15 - Bearing 7-19-6mm
  • Force - E-2101 Rear Exhaust - 0.15 - Bearing 7-19-6mm
  • Force - E-2106 Rear Exhaust - 0.21 - Bearing 7-19-6mm
  • GS General Silicone - 15R - 61 - Bearing 7-19-6mm
  • GS General Silicone - 15R - 76 - Bearing 7-19-6mm
  • GS General Silicone - R21B01P - 0.15 - Bearing 7-19-6mm
  • GS General Silicone - R25MT - 21 - Bearing 7-19-6mm
  • HP - 61 All Models - Bearing 7-19-6mm
  • HP - Old/1975 - 40 - Bearing 7-19-6mm
  • HP - VT 4C - 49 - Bearing 7-19-6mm
  • HPI - 21 - Bearing 7-19-6mm
  • HPI - 49 - Bearing 7-19-6mm
  • HPI - Nitro Star K4.6 - 15 - Bearing 7-19-6mm
  • HPI - Pro RSC - 15 - Bearing 7-19-6mm
  • HPI - RSC Pro - 4.6 CC - Bearing 7-19-6mm
  • Irvine - New Turbo - 53 - Bearing 7-19-6mm
  • K.B - SS Outboard Marine Engine - 0.15 - Bearing 7-19-6mm
  • LRP Nitro - Truggy 28 - 15 - Bearing 7-19-6mm
  • LRP Nitro - Z.12R Team Spec 2 - 12 - Bearing 7-19-6mm
  • LRP Nitro - Z.21R - 28 - Bearing 7-19-6mm
  • LRP Nitro - Z.28R Spec 2 Pullstart - 12 - Bearing 7-19-6mm
  • LRP Nitro - Z.28R Spec 2 Pullstart - 21 - Bearing 7-19-6mm
  • Mac - 15 - Bearing 7-19-6mm
  • Mac - Inboard - 84 - Bearing 7-19-6mm
  • Mac - OB PTO - 84 - Bearing 7-19-6mm
  • Mac - Outboard - 21 - Bearing 7-19-6mm
  • Magnum Power - XL - 32 - Bearing 7-19-6mm
  • Magnum Power - XL - 36 - Bearing 7-19-6mm
  • Magnum Power - XL - 40 - Bearing 7-19-6mm
  • Magnum Power - XL - 52 - Bearing 7-19-6mm
  • MAZ - 52 All Models - Bearing 7-19-6mm
  • MDS - 40 All Models - Bearing 7-19-6mm
  • MDS - 58 All Models - Bearing 7-19-6mm
  • Moki - All - 50 - Bearing 7-19-6mm
  • Moki - All - 61 - Bearing 7-19-6mm
  • Moki - Marine - 2.1 - Bearing 7-19-6mm
  • Mugen - MT - 21 - Bearing 7-19-6mm
  • MVVS - 15 All Models - Bearing 7-19-6mm
  • MVVS - GFR - 15 - Bearing 7-19-6mm
  • MVVS - GFR - 77 - Bearing 7-19-6mm
  • MVVS - GFS - 40 - Bearing 7-19-6mm
  • MVVS - Glow Engine - 1.5 - Bearing 7-19-6mm
  • MVVS - Glow Engine - 61 - Bearing 7-19-6mm
  • MVVS - GRRT - 40 - Bearing 7-19-6mm
  • Nosram - RS 21 Evo - 25 - Bearing 7-19-6mm
  • Nova Rossi - 2000 10 Port - 21 - Bearing 7-19-6mm
  • Nova Rossi - BR21SB01 Rex - 2000 - Bearing 7-19-6mm
  • Nova Rossi - BT21SB01 Top - 21 3.5CC - Bearing 7-19-6mm
  • Nova Rossi - CR12PR2/N Rex - 60 10CCSL - Bearing 7-19-6mm
  • Nova Rossi - CR12PS1/N Rex - 60 10CCSL - Bearing 7-19-6mm
  • Nova Rossi - CR12PS2/N Rex - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CR12R1/N Rex - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CR12R2/N Rex - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CR12S1/N Rex - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12PR1/N Rex - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12PR1/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12PR2/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12PS1/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12PS2/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12R2/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12RS1/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12S1/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CT12S2/N Top - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12PR1/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12PR2/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12PS1/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12PS2/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12R1/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12R2/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12S1/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX12S2/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - CX15R/N - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - ER15R Rex - 15 2.5CC - Bearing 7-19-6mm
  • Nova Rossi - ET Top - 15 2.5CC - Bearing 7-19-6mm
  • Nova Rossi - ET15R Top - 15 2.5CC - Bearing 7-19-6mm
  • Nova Rossi - MX12PR - 15 2.5CC - Bearing 7-19-6mm
  • Nova Rossi - Nova - 15 - Bearing 7-19-6mm
  • Nova Rossi - Nova - 28 4.66CC - Bearing 7-19-6mm
  • Nova Rossi - RS12TS1 - 12 2.1CC - Bearing 7-19-6mm
  • Nova Rossi - SX - 21 3.5CC - Bearing 7-19-6mm
  • Nova Rossi - TR15R Rex - 28 4.66CC - Bearing 7-19-6mm
  • Nova Rossi - TT15R Top - 12 21.CC - Bearing 7-19-6mm
  • Nova Rossi - TX15R/N - 15 2.5CC - Bearing 7-19-6mm
  • Ofna - 21 - 15 2.5CC - Bearing 7-19-6mm
  • Ofna - Force 12 Red Head - 21 - Bearing 7-19-6mm
  • Ofna - Hyper.12 - 15 - Bearing 7-19-6mm
  • OPS - 15 All Models - Bearing 7-19-6mm
  • OPS - 21 - Bearing 7-19-6mm
  • OPS - 35 All Models - Bearing 7-19-6mm
  • OPS - 40 All Models - Bearing 7-19-6mm
  • OPS - 90 All Models - Bearing 7-19-6mm
  • OPS - Old - 30 - Bearing 7-19-6mm
  • OPS - Pro - 30 - Bearing 7-19-6mm
  • OPS - Pro - 60 - Bearing 7-19-6mm
  • OPS - Rotor BRGS - 21 - Bearing 7-19-6mm
  • OPS - Rotor BRGS - 60 - Bearing 7-19-6mm
  • OS - H 40 P Old - 40 - Bearing 7-19-6mm
  • OS - H Rear Rotor - 60 - Bearing 7-19-6mm
  • OS - Outboard Marine - 16 - Bearing 7-19-6mm
  • OS - Outboard Marine - 40 - Bearing 7-19-6mm
  • OS - RG - 61 - Bearing 7-19-6mm
  • OS - RG P - 21 - Bearing 7-19-6mm
  • OS - RG-M Marine - 21 - Bearing 7-19-6mm
  • OS - RG-MX - 21 - Bearing 7-19-6mm
  • OS - RGX P - 21 - Bearing 7-19-6mm
  • OS - RX - 140 - Bearing 7-19-6mm
  • OS - RX With 10C - 15 - Bearing 7-19-6mm
  • OS - RX-B - 140 - Bearing 7-19-6mm
  • OS - RX-B - 15 - Bearing 7-19-6mm
  • OS - RX-M Marine - 61 - Bearing 7-19-6mm
  • OS - RZ-B - 21 - Bearing 7-19-6mm
  • OS - RZ-BP - 21 - Bearing 7-19-6mm
  • OS - RZ-M - 21 - Bearing 7-19-6mm
  • OS - RZ-R P - 21 - Bearing 7-19-6mm
  • OS - RZ-V01B P - 21 - Bearing 7-19-6mm
  • OS - RZ-V99B - 21 - Bearing 7-19-6mm
  • OS - RZ-V99B P - 21 - Bearing 7-19-6mm
  • OS - SZ-H - 32 - Bearing 7-19-6mm
  • OS - TM - 37 - Bearing 7-19-6mm
  • OS - TM - 91 - Bearing 7-19-6mm
  • OS - TZ - 12 - Bearing 7-19-6mm
  • OS - VG - 46 - Bearing 7-19-6mm
  • OS - VG P - 30 - Bearing 7-19-6mm
  • OS - VZ-B - 40 - Bearing 7-19-6mm
  • OS - VZ-R - 21 - Bearing 7-19-6mm
  • OS - XM Marine Outboard - 61 - Bearing 7-19-6mm
  • Picco - 15 All Models - Bearing 7-19-6mm
  • Picco - 67 - Bearing 7-19-6mm
  • Picco - 80 All Models - Bearing 7-19-6mm
  • Picco - 90 All Models - Bearing 7-19-6mm
  • Picco - EXR Silver Blue Head - 67 - Bearing 7-19-6mm
  • Picco - F1 All Models - Bearing 7-19-6mm
  • Picco - P5 - 26 - Bearing 7-19-6mm
  • Picco - P5 EXR - 21 - Bearing 7-19-6mm
  • Picco - P5 EXR - 27 - Bearing 7-19-6mm
  • Picco - P6 - 21 - Bearing 7-19-6mm
  • PIP Marine - A90HP 4 BGS - 21 - Bearing 7-19-6mm
  • Power Racing - 21 - 90 - Bearing 7-19-6mm
  • Power Racing - 26 - 21 - Bearing 7-19-6mm
  • Racers - Axial - 21 - Bearing 7-19-6mm
  • Racers - Edge - 21 - Bearing 7-19-6mm
  • RB - 15 All Models - Bearing 7-19-6mm
  • RB - 15 Small BLOCK - 32 - Bearing 7-19-6mm
  • RB - 25 All Models - Bearing 7-19-6mm
  • RB - 32 - Bearing 7-19-6mm
  • RB - All Models - Bearing 7-19-6mm
  • RB - Concept.21 WS7 - 21 - Bearing 7-19-6mm
  • RB - S5 - 21 - Bearing 7-19-6mm
  • RB - S7 EUROPA - 5 - Bearing 7-19-6mm
  • RB - S7II - 21 - Bearing 7-19-6mm
  • RB - WS7 - 23 - Bearing 7-19-6mm
  • RB - WS7II - 21 - Bearing 7-19-6mm
  • RB - WS7III - 21 - Bearing 7-19-6mm
  • RB - X - 21 - Bearing 7-19-6mm
  • Rex - 3.5 Serpent - 22 - Bearing 7-19-6mm
  • Rex - SB - 21 - Bearing 7-19-6mm
  • Rex - Serpent - 7 - Bearing 7-19-6mm
  • Rossi - 40 All Models - Bearing 7-19-6mm
  • Rossi - 45 All Models - Bearing 7-19-6mm
  • Rossi - Blackhead - Bearing 7-19-6mm
  • Rossi - Blackhead - 91 - Bearing 7-19-6mm
  • Rossi - Nitro - 90 - Bearing 7-19-6mm
  • Rossi - Revo Marine - 40 - Bearing 7-19-6mm
  • SH - SH-21 Pro Competition Buggy - 12 - Bearing 7-19-6mm
  • SH - SH-28 - 21 - Bearing 7-19-6mm
  • SH - SH-28 Pro - 21 - Bearing 7-19-6mm
  • SH - SH-28 Pro - 28 - Bearing 7-19-6mm
  • Sport Werks - All - 27 - Bearing 7-19-6mm
  • Stalker - Pro - 21 - Bearing 7-19-6mm
  • STS - 12 - 46 - Bearing 7-19-6mm
  • STS - 21-30 - 51 - Bearing 7-19-6mm
  • Super Tigre - 31 All Models - Bearing 7-19-6mm
  • Super Tigre - Bull Ring - 31 - Bearing 7-19-6mm
  • Super Tigre - Bull Ring - 46 - Bearing 7-19-6mm
  • Super Tigre - G - 21 - Bearing 7-19-6mm
  • Super Tigre - G - 29 - Bearing 7-19-6mm
  • Super Tigre - G - 46 - Bearing 7-19-6mm
  • Super Tigre - G Sport W-Muffler - 60 - Bearing 7-19-6mm
  • Super Tigre - G21 - 49 - Bearing 7-19-6mm
  • Super Tigre - G34 - 35 - Bearing 7-19-6mm
  • Super Tigre - G51 Ring - 2300 - Bearing 7-19-6mm
  • Super Tigre - G51 Ring - 34 - Bearing 7-19-6mm
  • Super Tigre - GS40 Ring - 34 - Bearing 7-19-6mm
  • Super Tigre - GS45 ABC - 40 - Bearing 7-19-6mm
  • Super Tigre - Marine - 45 - Bearing 7-19-6mm
  • Super Tigre - S - 40 - Bearing 7-19-6mm
  • Super Tigre - S - 61 - Bearing 7-19-6mm
  • Super Tigre - S - 71 - Bearing 7-19-6mm
  • Super Tigre - SK - 18 - Bearing 7-19-6mm
  • Super Tigre - ST - 45 - Bearing 7-19-6mm
  • Super Tigre - ST - 51 - Bearing 7-19-6mm
  • Super Tigre - ST K - 60 - Bearing 7-19-6mm
  • Super Tigre - ST Old - 56 - Bearing 7-19-6mm
  • Super Tigre - X - 15 - Bearing 7-19-6mm
  • Super Tigre - X - 21 - Bearing 7-19-6mm
  • Super Tigre - X - 40 - Bearing 7-19-6mm
  • Thunder Tiger - Evo - 70 - Bearing 7-19-6mm
  • Thunder Tiger - Marine - 90 - Bearing 7-19-6mm
  • Thunder Tiger - Pro - 15 - Bearing 7-19-6mm
  • TOP - BT3.5BK - 91 - Bearing 7-19-6mm
  • Webra - 28 All Models - Bearing 7-19-6mm
  • Webra - 61 All Models - Bearing 7-19-6mm
  • Webra - Heli - 80 - Bearing 7-19-6mm
  • Webra - Speed Heli MOD 1023H - 40 - Bearing 7-19-6mm
  • XTM Racing - 18 - 91 - Bearing 7-19-6mm
  • XTM Racing - 24.7 Pro - 18 - Bearing 7-19-6mm
  • XTM Racing - 24.7 Pro - 21 - Bearing 7-19-6mm
  • XTM Racing - 24.7 Pull Start - 18 - Bearing 7-19-6mm
  • XTM Racing - 24.7 Pull Start - 24.7 - Bearing 7-19-6mm

Cross References

  • BOCA MR607C-2RUTH9-C3
  • 607CSNT9H2RUECO
  • MR607C2RUTH9C3
  • 607 Basic Size Ref
View full details
607-CSN-2RU-T9H-ECODiagram607-CSN-2RU-T9H-ECOImage
