SF697-ZZ-MC3 - Datasheet
MBA
Category Information

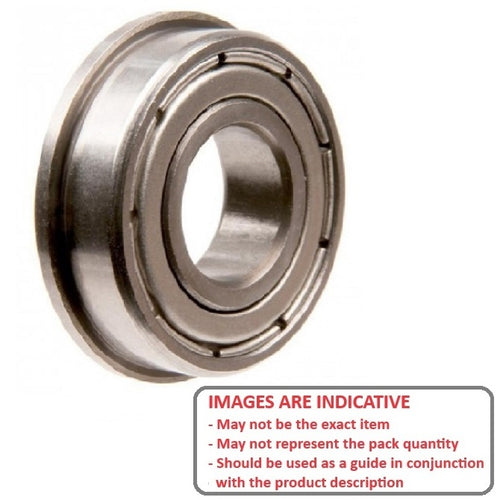

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless440C Stainless Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

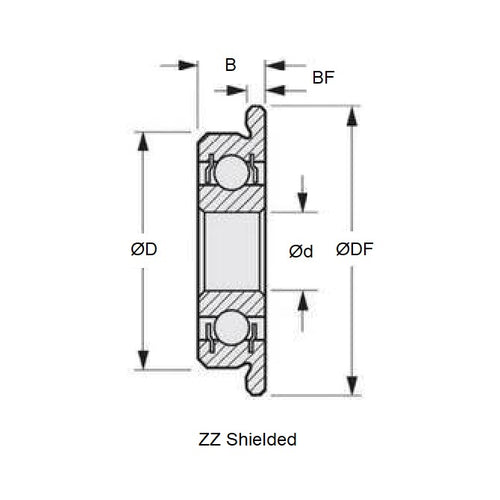

- ID (d)
:
7.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.276 in.) - OD (D)
17.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.669 in.) - Width (B)
5.000
mm
+ 0.000 / - 0.125
(Equiv. 0.197 in.) - Flange Diameter (DF) 19.000 mm
- Flange Width (BF) 1.200 mm
- Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part F697
- Limiting Speed 36000
- Cage Type Ribbon
- Static Load Rating KGf 73
- Dynamic Load Rating KGf 164
- Radii 0.30 mm
- Inner Shoulder (UI) 9.30mm
- Outer Shoulder (UO) 14.30 mm
- Number of Balls 9
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- 57155K615
- ISO F697HZZ
- ISO F697H-ZZ
- Stainless F697ZZMC3
- Stainless F697-ZZ-MC3
- NTN FLW697-ZZ
- Shielded SF697 / 5
- GRW SF697-2Z
- Shielded SSF697 / 5
- GRW SSF697-2Z
- ADR WFAY7-ZZ
- SF697-ZZMC3
- SF697ZZMC3
- SF697SS
- SF6972Z
- WFAY7ZZ
- SSF697ZZMC3
- SSF6972Z
- SSF697SS
- SSF697-ZZMC3
- F697-Z-MC3
- F697ZMC3
- FLW697ZZ
- F697 Basic Size Ref
