697-2RU-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

High Speed Cage Precision Unflanged Single Row Ball Bearings. This product group includes bearings with cages for high speed applications, including phenolic, nylon and polyamide.

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings in this group have various types of high speed cages.
  • Speed ratings range from 20 percent to 80 percent increase on standard cage types.
  • See individual datasheets, available on request.
  • Items with high speed cages usually have the suffixes T9H, TNH, TW or KC
  • This category does not include ceramic hybrid bearings with high speed cages. These are listed under Bearings - Ceramic Hybrid

Product Data

  • ID (d) : 7.000 mm
    (Equiv. 0.276 in.)
  • OD (D) 17.000 mm
    (Equiv. 0.669 in.)
  • Width (B) 5.000 mm
    (Equiv. 0.197 in.)
  • Precision Grade Economy
  • Closure Type 2RU
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 697
  • Limiting Speed 51984
  • Cage Type Polyamide
  • Static Load Rating KGf 69.4
  • Dynamic Load Rating KGf 155.8
  • Radii 0.30 mm
  • Inner Shoulder (UI) 9.30mm
  • Outer Shoulder (UO) 14.30 mm
  • Number of Balls 9
  • Clearance ECO (5 to 23)
  • Precision Grade ECO
  • Closure Type 2RU
  • Max Temperature 80 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP - 25 - Front Bearing
  • ASP - 25 All Models - Bearing 7-17-5mm
  • Bluebird - 21 All Models - Bearing 7-17-5mm
  • Bluebird - 28 - Front Bearing
  • China Shanghai - CSGS / Car / Marine - 15 - Bearing 7-17-5mm
  • Magnum Power - 120 All Models - Bearing 7-17-5mm
  • Magnum Power - XL - 120 - Bearing 7-17-5mm
  • Mugen - X - 21 - Bearing 7-17-5mm
  • Nova Rossi - LL3 - 15 2.5CC - Bearing 7-17-5mm
  • Nova Rossi - LS15PS2 - 15 2.5CC - Bearing 7-17-5mm
  • Nova Rossi - LS15S1 - 21 - Bearing 7-17-5mm
  • Nova Rossi - MX15PR - 15 2.5CC - Bearing 7-17-5mm
  • Nova Rossi - N12LL-3 - 15 2.5CC - Bearing 7-17-5mm
  • Nova Rossi - NS12 - Front Bearing
  • Nova Rossi - NS12S3 - 20 - Bearing 7-17-5mm
  • Nova Rossi - NS12S5 - 20 - Bearing 7-17-5mm
  • Nova Rossi - NS15S5 - 40 - Bearing 7-17-5mm
  • Nova Rossi - NSR12S3 - 12 2.1CC - Bearing 7-17-5mm
  • Nova Rossi - NSR12S5 - 12 2.1CC - Bearing 7-17-5mm
  • Nova Rossi - Plus 3 CT - 12 2.1CC - Bearing 7-17-5mm
  • Nova Rossi - RE12S3 Rex - 28 4.6CC - Bearing 7-17-5mm
  • Nova Rossi - RE12S5 Rex - 28 4.6CC - Bearing 7-17-5mm
  • Nova Rossi - RER12S3 Rex - 21 - Bearing 7-17-5mm
  • Nova Rossi - RER12S5 Rex - 12 2.1CC - Bearing 7-17-5mm
  • Nova Rossi - RR12L3 - 12 2.1CC - Bearing 7-17-5mm
  • Nova Rossi - RR12L5 - 12 2.1CC - Bearing 7-17-5mm
  • Nova Rossi - TS12S3 Top - 28 4.66CC - Bearing 7-17-5mm
  • Nova Rossi - TS12S5 Top - 15 2.5CC - Bearing 7-17-5mm
  • Nova Rossi - TSR12S3 Top - 15 2.5CC - Bearing 7-17-5mm
  • Nova Rossi - TSR12S5 Top - 12 21.CC - Bearing 7-17-5mm
  • Ofna - Maxx 3.5 - 12 - Bearing 7-17-5mm
  • Orion - 0.21 SB - 90 - Bearing 7-17-5mm
  • OS - 12 CVR - Front Bearing
  • OS - CV-M - 15 - Bearing 7-17-5mm
  • OS - CV-R - 12 - Bearing 7-17-5mm
  • OS - CV-R - 15 - Bearing 7-17-5mm
  • OS - CV-R - 18 - Bearing 7-17-5mm
  • OS - CV-R P With 10 E - 18 - Bearing 7-17-5mm
  • OS - CV-R P With 10C - 12 - Bearing 7-17-5mm
  • OS - CV-R S With 10E - 12 - Bearing 7-17-5mm
  • OS - CV-R S With 10E - 15 - Bearing 7-17-5mm
  • OS - CV-R With 10A - 12 - Bearing 7-17-5mm
  • OS - CV-R With 10C - 15 - Bearing 7-17-5mm
  • OS - CV-R With 10E - 12 - Bearing 7-17-5mm
  • OS - CV-R With 10E - 15 - Bearing 7-17-5mm
  • OS - CV-RX - 15 - Bearing 7-17-5mm
  • OS - CV-RX S W10E - 12 - Bearing 7-17-5mm
  • OS - CV-RX S With 10ER - 18 - Bearing 7-17-5mm
  • OS - CV-RX With 10E10A - 18 - Bearing 7-17-5mm
  • OS - TR - 18 - Bearing 7-17-5mm
  • OS - TR P- Turbo Head - 18 - Bearing 7-17-5mm
  • OS - TR S With 10M - 21 - Bearing 7-17-5mm
  • OS - TR With 10J - 12 - Bearing 7-17-5mm
  • OS - TR With 10M - 12 - Bearing 7-17-5mm
  • OS - TR-R Spec - 12 - Bearing 7-17-5mm
  • OS - TZ - 12 - Bearing 7-17-5mm
  • Picco - Max - 90 - Bearing 7-17-5mm
  • Picco - P 3.5 Max - 80 - Bearing 7-17-5mm
  • Picco - P2 - 90 - Bearing 7-17-5mm
  • RB - V12 Rody - 21 - Bearing 7-17-5mm
  • Rossi - 21 Marine - Front Bearing
  • Rossi - 21 Old Marine - Front Bearing
  • Rossi - Marine Old - 45 - Bearing 7-17-5mm
  • Saito - 180 All Models - Bearing 7-17-5mm
  • Sirio - 12 - 28 - Bearing 7-17-5mm
  • Sirio - 12SE - 28 - Bearing 7-17-5mm
  • Sirio - TX18 - 12 - Bearing 7-17-5mm
  • Traxxas - 2.5 Marine - 61 - Bearing 7-17-5mm
  • Traxxas - 25R - 25 - Bearing 7-17-5mm
  • Traxxas - Revo - 15 - Bearing 7-17-5mm
  • Traxxas - Sport Max 75 - Bearing 7-17-5mm
  • Traxxas - T-Max - 3.3 - Bearing 7-17-5mm
  • Traxxas - TRX - 3.3 - Bearing 7-17-5mm

Cross References

  • OS 2 26 31 020
  • BOCA MR697-2RU-TH9-C3
  • MR6972RUTH9C3
  • 697T9H2RUECO
  • 697 Basic Size Ref
View full details

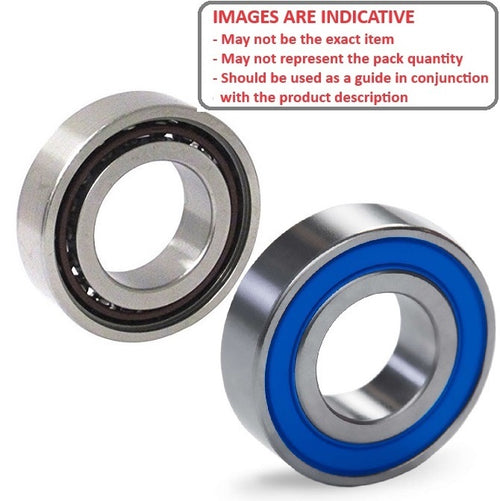

697-2RU-T9H-ECODiagram697-2RU-T9H-ECOImage
