B-100T-0078-0100-PSB - Datasheet
MBA
Category Information

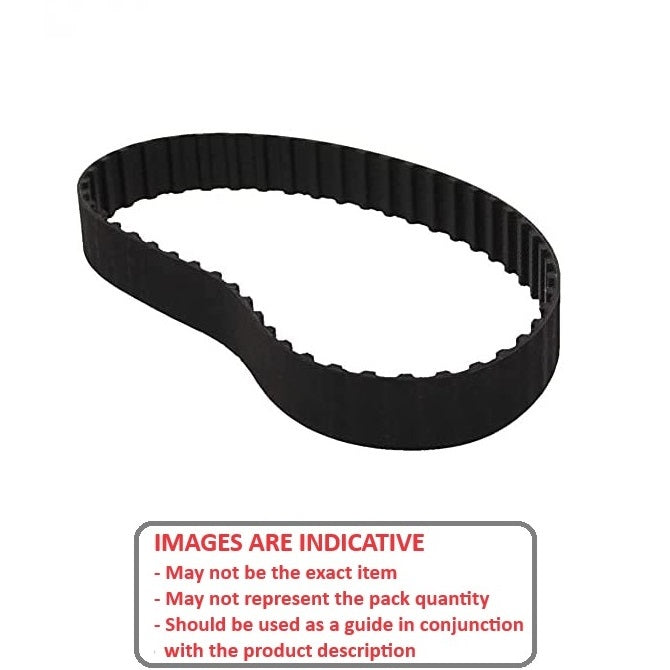

Belts - Timing 10.000mm Pitch - T10 - 10mm WideA selection of 10mm Wide T10 Timing 10.000mm Pitch Belts. T Series 10mm Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

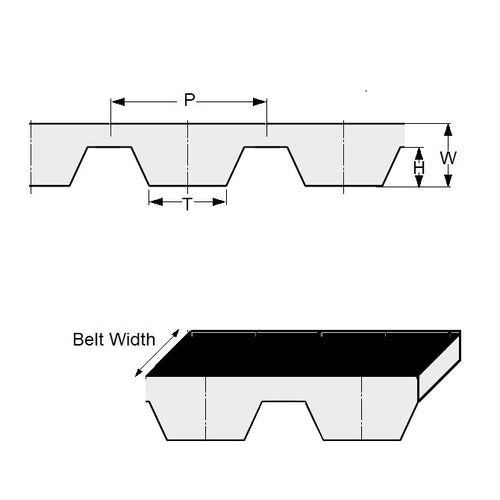

- Tooth Length (T) - 3.25mm
- Tooth Height (H) - 2.5mm
- Belt Height (W) - 4.5mm - Corner Radii ( r )- 0.6mm
- Pitch (P) - 10mm
Product Data
- Teeth : 78
- Length
780
mm
(30.709 in.) - Width
10.0
mm
(0.394 in.) - Reinforcement Steel
- Appearance Black
- Breaking Strength 2720 N
- Material Polyurethane with Steel Cords
