Miniature Bearings Australia
OR-07874-533-VBR90-338 - Datasheet
MBA
Category Information

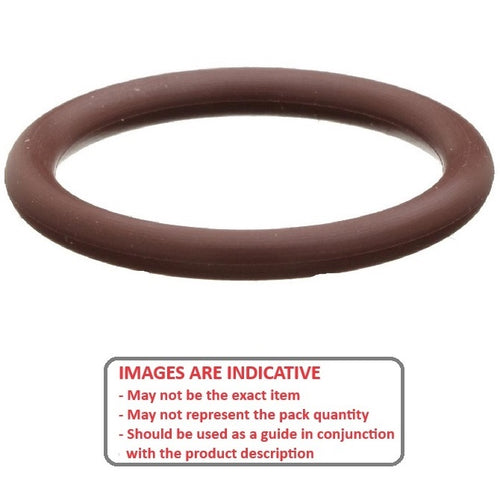

O-Rings - FluoroelastomerFluoroelastomer O-Rings. Viton(R) A for high temperature and chemical resistance.
- Temperature Range: -20 Deg C to +200 Deg C.
- Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
- Viton(R) is a registered trademark of Dupont Corporation.
- Viton is usually supplied brown, but black may be substituted when brown is unavailable.
Product Data

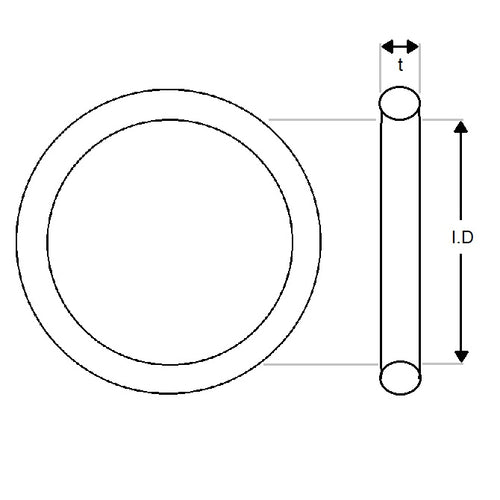

- Inside Diameter (ID)
:
78.74
mm
(Equiv. 3.1 in.) - Section (t)
5.33
mm
(Equiv. 0.21 in.) - Colour Brown Fluoroelastomer
- Hardness Duro 90
- Material Fluoroelastomer
Product Compliance and Data
Additional Resources
Cross References
- BS338-V90
- BS338V90
