CCI-07779-C - Datasheet
MBA
Category Information

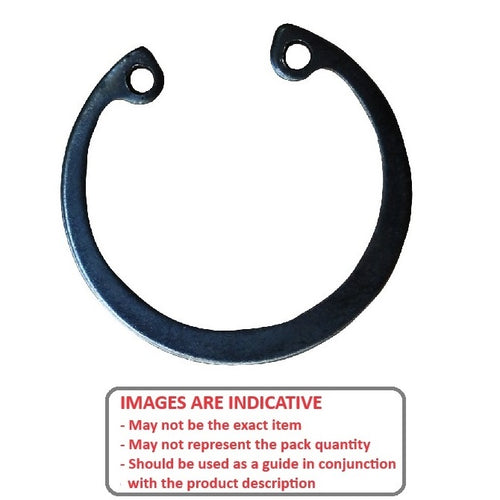

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
77.79
mm
(Equiv. 3.063 in.) - Clip Thickness (T)
2.77
mm
+/- 0.152
(Equiv. 0.109 in.) - Groove Dia. (Dg)
82.50
mm
+ 0.00 / - 0.07
(Equiv. 3.248 in.) - Approx. Loose Circlip OD (Dr) 86.82 mm + 1.40 / - 1.40
- Groove Width (W) 3.05 mm + 0.13 / - 0.00
- Clearance in Bore (C) 62.48 mm
- Clearance in Groove (C1) 67.06 mm
- Min. Lug Diameter (h) 3.12 mm
- Min. Extension (n) 7.09
- Standard MIL-16625
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor HO-306
- HO306
- N13000306APP
- N1300-0306APP
