BP0762-0889-1016-BC9 - Datasheet
MBA
Category Information

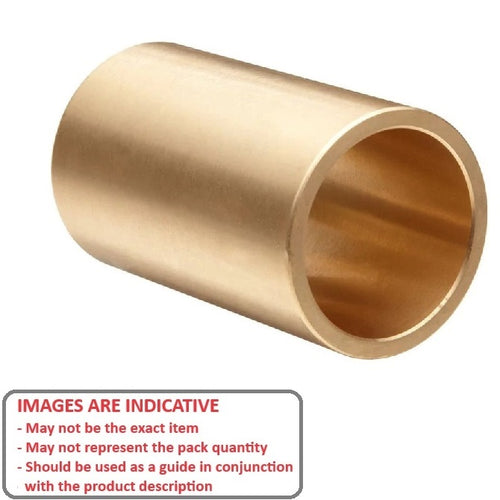

Bushes - Unflanged - Bronze - SolidSolid Bronze Unflanged Bushes. Solid precision leaded gunmetal bronze bushes. C93200 as indicated in the listings.
- An expanded range may be available on special order. Please enquire.
- Composition (Approx.) : Copper 81%, Tin 7%, Zinc 4%, Lead 6%, Nickel 2%.
- Hardness : 70-90 BHN.
Product Data
- Nominal Inside Diameter (d)
:
76.200
mm
+/- 0.0254
(Equiv. 3 in.) - Nominal Outside Diameter (D)
88.900
mm
+ 0.0762 / + 0.127
(Equiv. 3.5 in.) - Length (s)
101.600
mm
+/- 0.127
(Equiv. 4 in.) - Material Bronze C93200
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- 6381K401
- Gobeil BB-4856-64
- Gobeil BB-4856-66
- Century CB-4856-32
- Century CB-4856-33
- BB485666
- BB485664
- CB485632
- CB485633
- BNT-304
- BNT304
